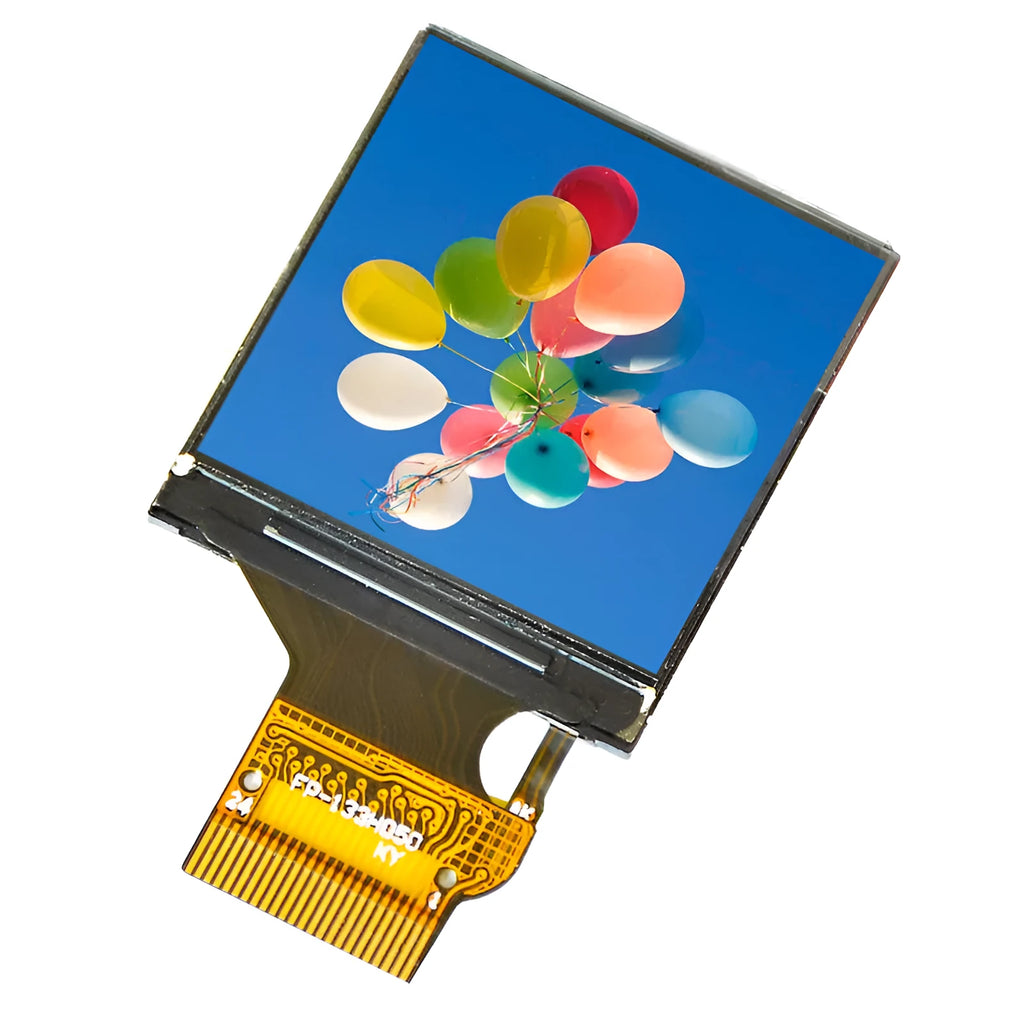

1.3 Inch IPS LCD Full Colour Display with 240x240 Resolution for Development Projects

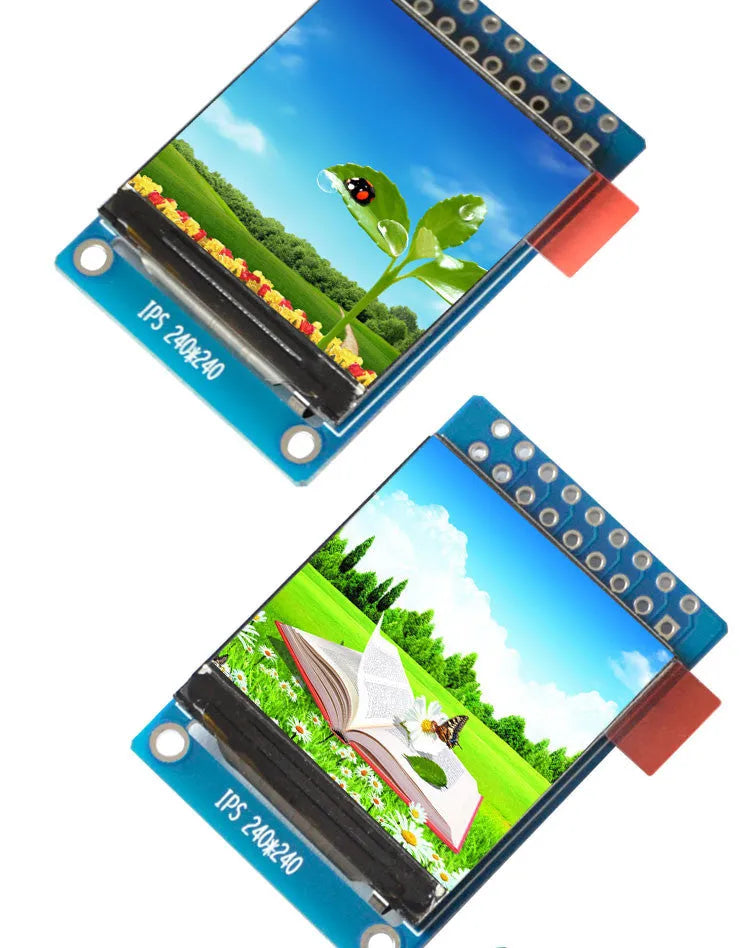

This compact 1.3-inch IPS LCD display offers developers and electronics enthusiasts a high-quality visual interface for Raspberry Pi, Arduino, and similar microcontroller projects. With its 240x240 pixel resolution spread across a 23.4x23.4mm viewing area, the screen provides crisp, detailed imagery in a square format that's well-suited for instrumentation displays, miniature interfaces, and compact monitoring applications. The IPS (In-Plane Switching) technology ensures colours remain accurate and viewing angles remain wide, addressing the limitations of conventional TFT displays where image quality diminishes when viewed from the side.

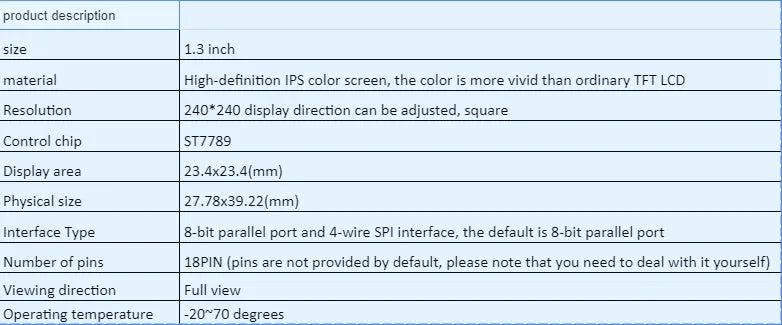

Technical Specifications and Physical Properties

This display module combines technical capability with practical dimensions that make it suitable for space-constrained projects. The ST7789 control chip manages display operations efficiently, while the physical design keeps the overall footprint manageable for integration into various electronic assemblies.

Display Area and Resolution

The screen's 23.4x23.4mm active display area provides a square canvas for 240x240 pixels, creating a pixel density appropriate for detailed graphics and text. This resolution allows for approximately 57,600 individual addressable points, sufficient for displaying sensor readings, simple user interfaces, or status indicators without overwhelming the available space. The square format is particularly useful for circular gauges, symmetrical layouts, or applications where height and width parity simplifies design considerations.

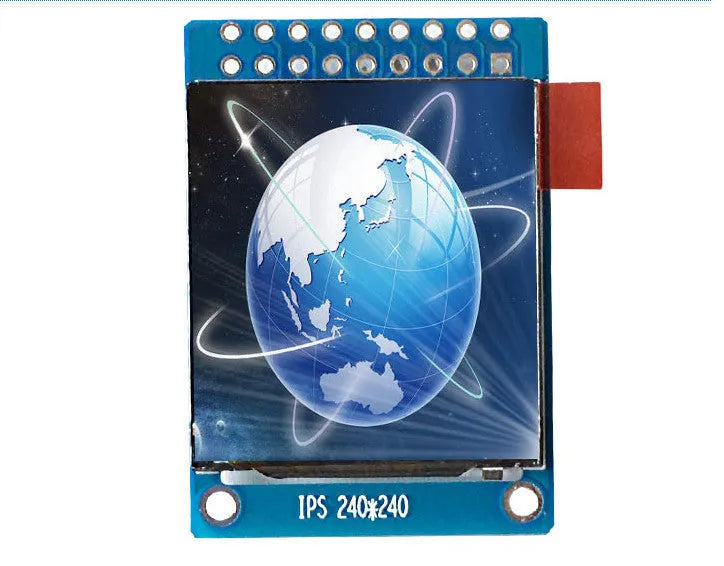

Physical Dimensions and Construction

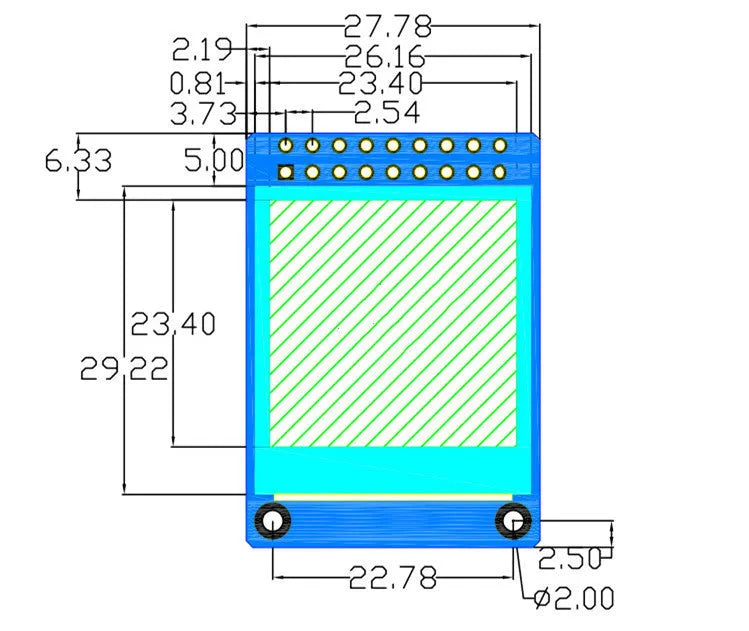

Measuring 27.78mm by 39.22mm overall, the display module maintains a compact footprint while accommodating necessary circuitry and connection points. This size allows installation in enclosures where space is at a premium, such as handheld instruments, wearable electronics, or compact control panels. The 18-pin interface arrangement provides necessary connections for power, data, and control signals, though users must source and install their own pins according to project requirements.

Connectivity and Interface Options

Flexibility in connection methods makes this display adaptable to various microcontroller platforms and project requirements. The dual interface support allows developers to choose the approach that best suits their existing hardware configuration and performance needs.

8-Bit Parallel Port Interface

The default 8-bit parallel port interface offers faster data transfer capabilities suitable for applications requiring rapid screen updates or complex graphical rendering. This connection method sends data across multiple pins simultaneously, reducing the time needed to refresh display content and supporting more dynamic visual elements. It's particularly appropriate for projects where visual responsiveness enhances user experience or where processor overhead for display management needs minimisation.

4-Wire SPI Interface Alternative

The available 4-wire SPI (Serial Peripheral Interface) option provides a simplified connection method using fewer pins, freeing microcontroller resources for other functions. This approach suits projects where pin count is limited or where a serial interface better aligns with existing hardware designs. SPI connectivity typically requires less wiring complexity while still delivering adequate performance for many display applications, particularly those with less frequent screen updates or simpler graphical requirements.

Practical Applications and Integration

This display's combination of specifications makes it suitable for various electronics projects where visual feedback enhances functionality or user interaction.

Development Board Integration

The screen interfaces readily with popular development platforms including Raspberry Pi models and Arduino boards, providing local display capabilities without requiring external monitors. This makes projects more self-contained and portable, allowing standalone operation without computer connections. The adjustable display direction feature lets developers orient the screen according to project enclosure constraints or viewing angle preferences, accommodating different mounting configurations.

Environmental Considerations

With an operating temperature range spanning from -20°C to 70°C, the display functions reliably in environments that might challenge less robust components. This temperature tolerance supports projects intended for outdoor use, automotive applications, or industrial settings where thermal conditions vary beyond typical room temperature ranges. The wide viewing angles provided by IPS technology ensure visual information remains legible even when viewed from oblique positions, important for applications where users approach from different directions.
