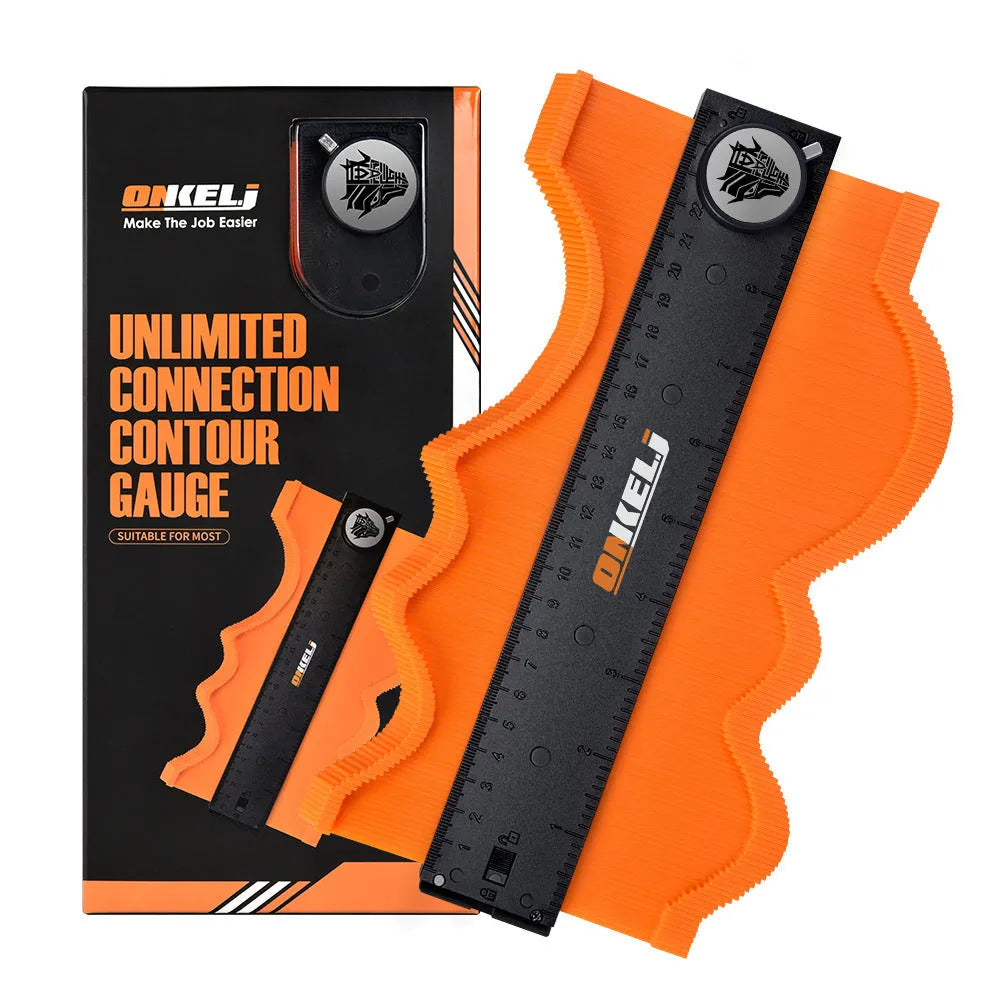

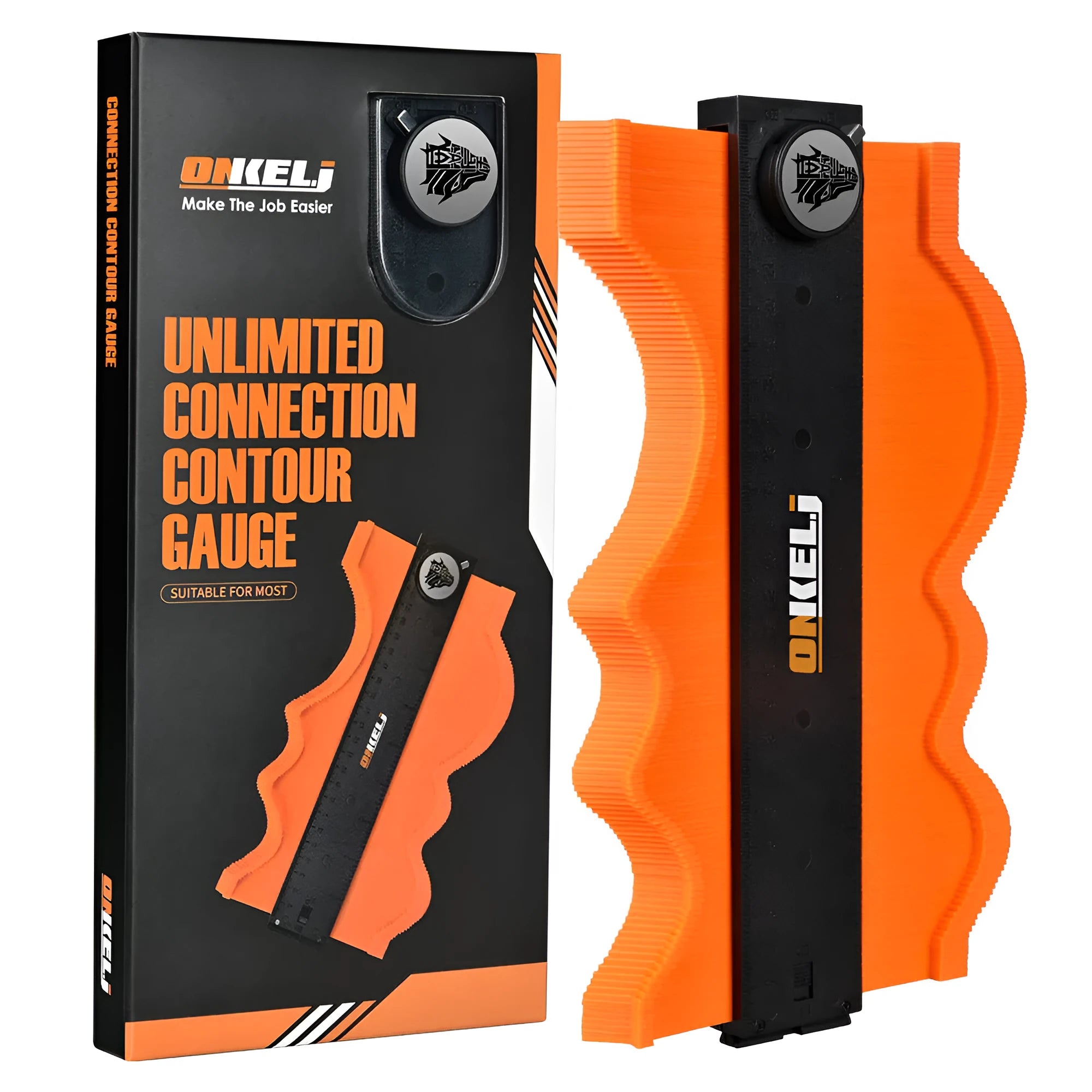

10-inch Contour Gauge with Lock Belt Positioning for Accurate Infinite Splicing Measurement

This contour gauge with lock belt positioning provides a practical solution for transferring irregular shapes and complex contours onto materials for cutting, marking, or replication purposes. Its infinite splicing capability allows for continuous measurement of profiles without limitations, while the integrated locking mechanism ensures captured shapes remain securely positioned during the transfer process. The combination of ABS plastic and stainless steel construction offers durability for workshop use, with dimensions of 265mm x 130mm x 27mm providing a substantial 10-inch working length for various measurement tasks. With 1mm precision accuracy, this tool supports woodworking projects, flooring installation, tiling work, and general DIY applications where accurate contour replication is essential.

Features and Construction

The contour gauge incorporates several functional elements designed to support accurate shape measurement and transfer. Its construction combines different materials to provide both structural integrity and measurement precision, while the locking mechanism adds practical utility for securing captured contours.

Material and Build

The gauge utilizes ABS plastic for its main body structure, providing a lightweight yet durable framework that resists impact during workshop use. Stainless steel components form the measurement pins and locking mechanisms, offering corrosion resistance and maintaining accuracy over time. This material combination creates a tool that balances structural strength with functional precision, suitable for various measurement environments from woodworking shops to construction sites.

Size and Practical Fit

With dimensions of 265mm in length, 130mm in width, and 27mm in depth, the gauge offers substantial measurement capacity while remaining manageable for hand use. The 10-inch working length provides sufficient reach for most contour measurement tasks, from door trims and skirting boards to curved furniture components. The tool's proportions allow for comfortable handling during both measurement capture and shape transfer operations.

Uses and Placement

This contour gauge serves multiple applications across different settings, from professional workshops to home DIY projects. Its functionality supports accurate shape replication for various materials and installation tasks where precise fitting is required.

Event or Professional Use

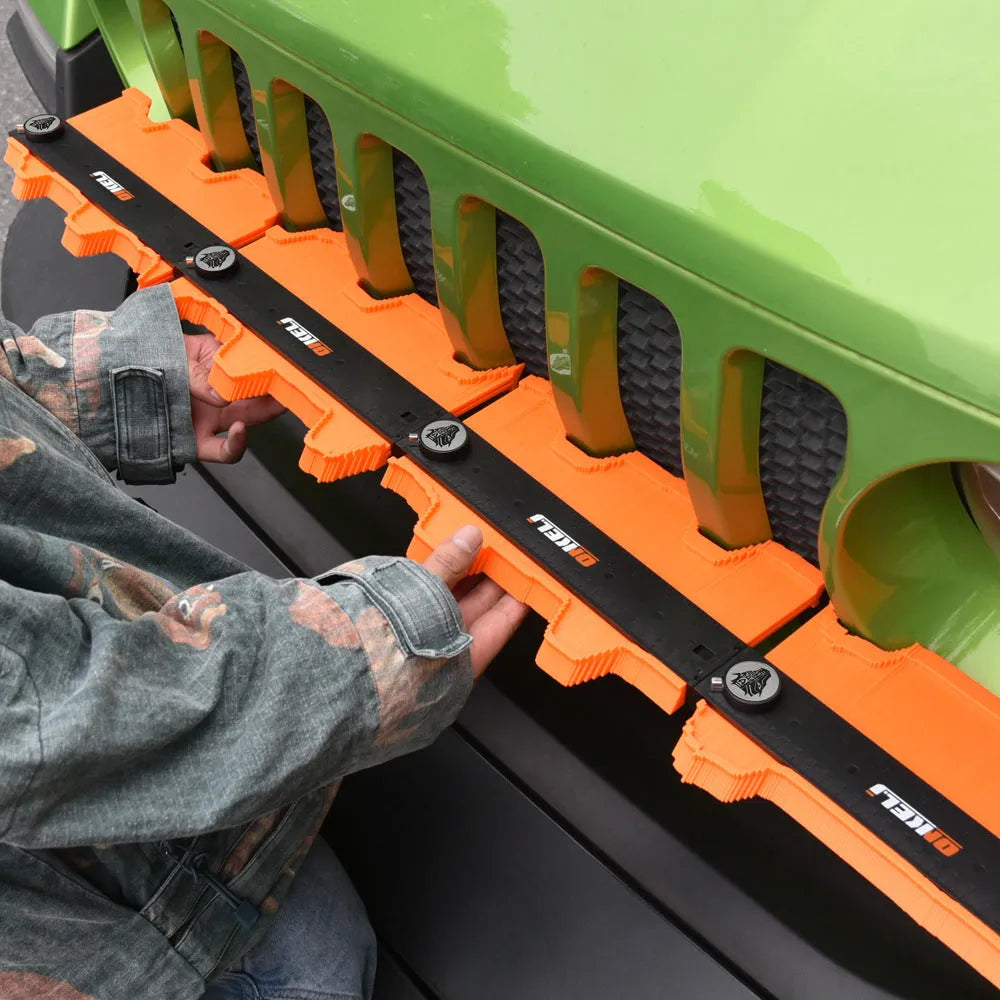

In professional settings, the gauge assists flooring installers with transferring complex floor contours for accurate cutting, supports tilers in replicating intricate wall shapes, and helps carpenters with fitting trim work around irregular surfaces. The lock belt positioning ensures shapes remain intact during transportation between measurement and cutting locations, while the 1mm accuracy supports professional standards for precise material fitting.

Everyday Home Use

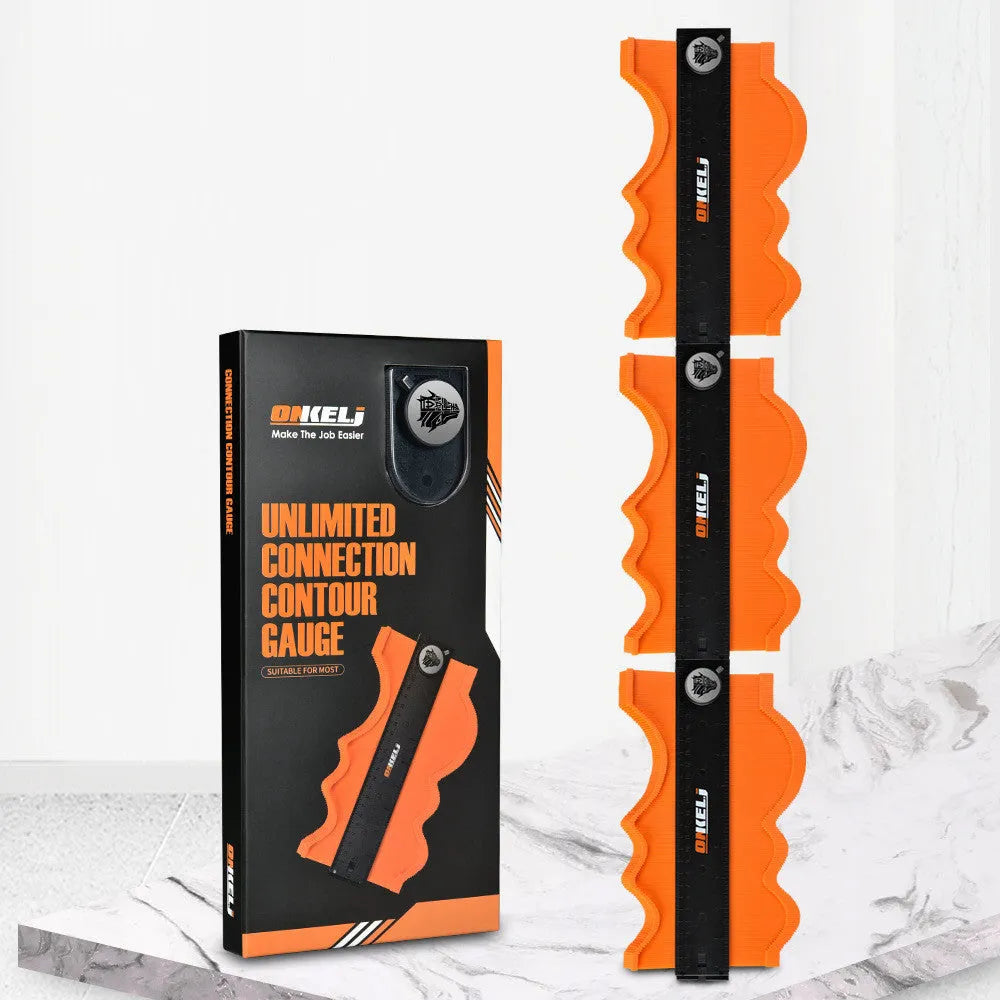

For home DIY projects, the gauge simplifies tasks like fitting skirting boards around uneven walls, creating custom shelving that follows wall contours, or cutting flooring to fit around fireplace hearths. The infinite splicing capability allows homeowners to measure continuous profiles without interruption, while the included radian ruler supports additional measurement tasks for complete project support.

Benefits and Buying Value

The contour gauge offers practical advantages for users requiring accurate shape transfer capabilities. Its design focuses on functional reliability and measurement precision rather than superfluous features, providing value through consistent performance.

Reuse and Low Maintenance

The ABS and stainless steel construction requires minimal maintenance beyond occasional cleaning with a dry cloth. The materials resist corrosion and wear, supporting repeated use across multiple projects. The locking mechanism maintains its holding capability through regular use, ensuring the gauge remains functional over time without requiring adjustments or replacements.

Why Choose This Product

This contour gauge combines infinite splicing measurement with secure locking capability in a single tool, eliminating the need for multiple measurement devices. The 10-inch length provides sufficient capacity for most common contour measurement tasks, while the 1mm accuracy supports precise material fitting. The material construction offers durability for workshop environments, making it suitable for both occasional DIY use and regular professional application.
