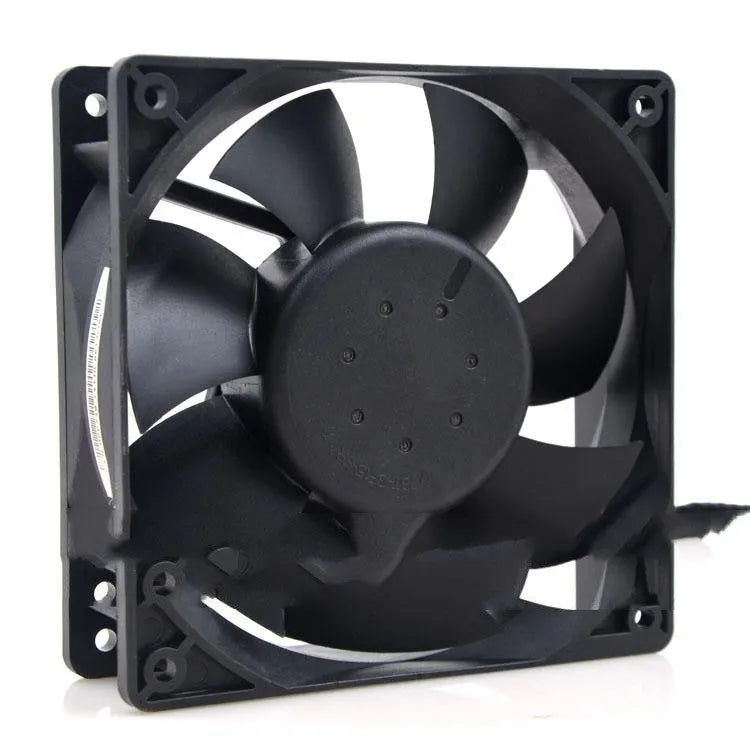

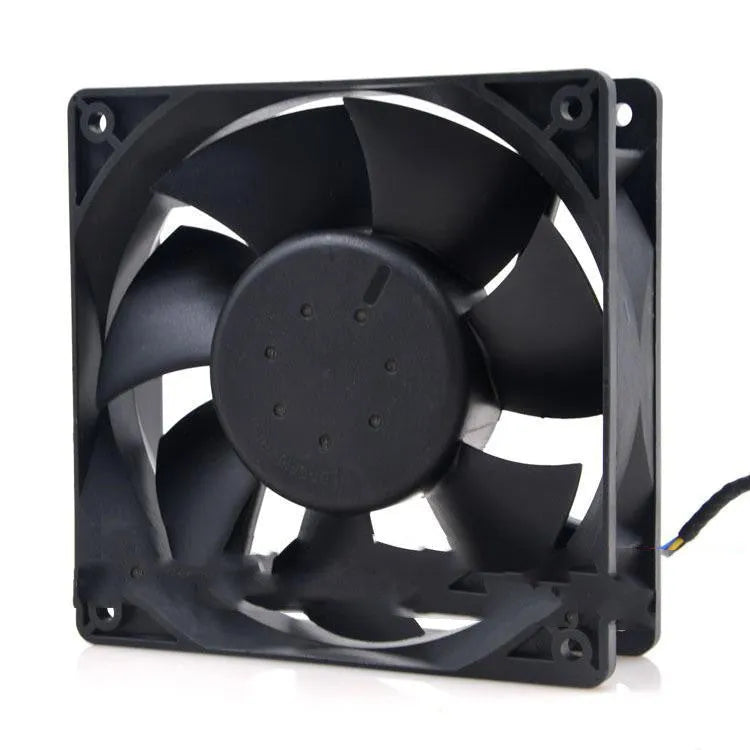

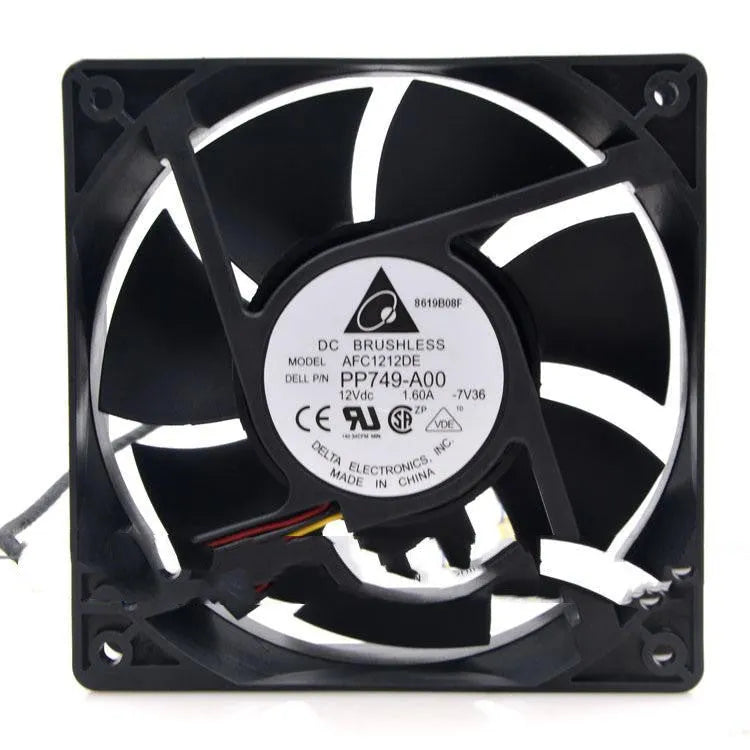

Delta AFC1212DE 12038 12V 1.6A Cooling Fan with PWM and Double Ball Bearing

Managing heat in electronics enclosures, server racks, or industrial control cabinets requires a fan that delivers consistent airflow while offering precise speed control. The Delta AFC1212DE is a 12038 DC axial fan engineered for high-volume cooling at 154.5CFM, using a 4-wire PWM interface that lets you adjust speed to match thermal demand. Its high-precision double ball bearing supports a rated lifetime of 80,000 hours at 25 degrees Celsius, reducing maintenance intervals in continuous-use environments. With a flame-retardant glass-fibre-reinforced frame and blade assembly, this fan meets safety requirements for enclosed electronic systems.

Features and Construction

The fan is built from engineering-grade materials and precision components to ensure reliable performance under typical operating conditions. Each element is chosen for thermal and mechanical stability in demanding applications.

Material and Build

Both the fan frame and blades are manufactured using a single injection moulding process from PBT with 30% glass fibre. This construction is rated V0 for flame retardancy, helping to contain potential fire risks in electrical enclosures. The fan weighs approximately 160 grammes and uses a standard 12038 form factor for easy replacement.

Size and Practical Fit

Measuring 120mm by 120mm with a 38mm thickness, the fan fits standard 120mm mounting points in computer cases, network equipment, and industrial chassis. The 4-wire PWM cable allows connection to motherboard headers or dedicated fan controllers that support pulse-width modulation.

Uses and Placement

This fan suits a range of active cooling scenarios, from desktop PCs to rack-mounted equipment. Its high static pressure and airflow make it effective for moving air through restrictive grilles or heatsinks.

Event or Professional Use

In broadcast, server, or telecom settings where equipment runs continuously, the 80,000-hour rated bearing life and wide voltage tolerance (±15% of rated 12V) reduce downtime. The PWM input enables integration with temperature-based fan speed curves for quiet operation at low loads and maximum cooling when needed.

Everyday Home Use

For home server builds, 3D printer enclosures, or audio equipment racks, the fan provides straightforward installation and consistent airflow. The counterclockwise rotation direction should be checked against your ventilation path, and the 45.4dB-A noise level at full speed is comparable to a typical desktop case fan under load.

Benefits and Buying Value

Choosing a fan with extended bearing life and flame-retardant construction adds long-term dependability to your thermal management system without requiring frequent replacements.

Reuse and Low Maintenance

The double ball bearing design is rated for 80,000 hours of operation at 25°C, translating to over nine years of continuous use before service is likely needed. This makes it suitable for equipment expected to run 24/7. The V0 flame-retardant frame and blades add an extra safety margin for enclosed electronics.

Why Choose This Product

Delta is a known OEM supplier in the cooling industry, and the AFC1212DE model combines high airflow capacity (154.5CFM) with PWM control flexibility. The 12038 format fits standard mounts, and the reinforced material construction resists warping at elevated operating temperatures up to 70°C.
