Professional Volvo Engine Timing Tool Kit for T6 3.0 and 3.2 Engine Cylinder Head Alignment

This carbon steel timing tool set is engineered specifically for professional and advanced DIY work on Volvo's T6 3.0 and 3.2 litre engines, as well as other compatible 4-, 5-, and 6-cylinder Volvo powerplants. Its primary function is to provide accurate mechanical alignment during critical engine disassembly and reassembly procedures. Without such tools, reinstalling a cylinder head or performing camshaft work risks misalignment, which can lead to severe engine damage, poor performance, or failure to start. This set directly addresses that risk by offering the necessary fixtures to lock and position key components correctly, ensuring the timing is preserved throughout the repair process.

Features and Construction

This tool kit is built for a single, highly specialised purpose: maintaining precise engine timing during invasive mechanical work. Its value lies in its specific compatibility and the concrete tasks it is designed to perform, rather than general-purpose use.

Material and Build

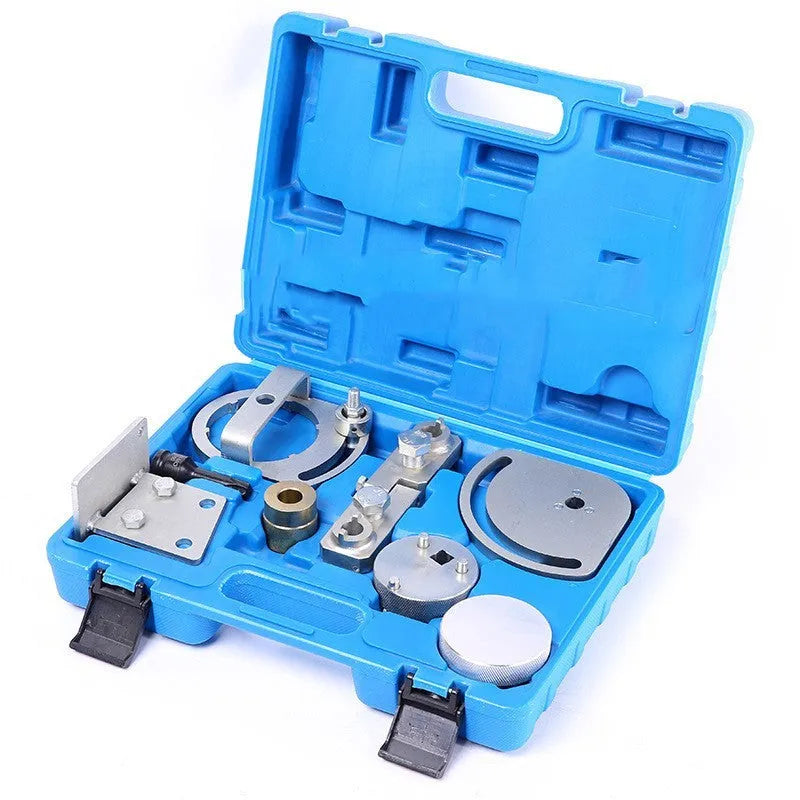

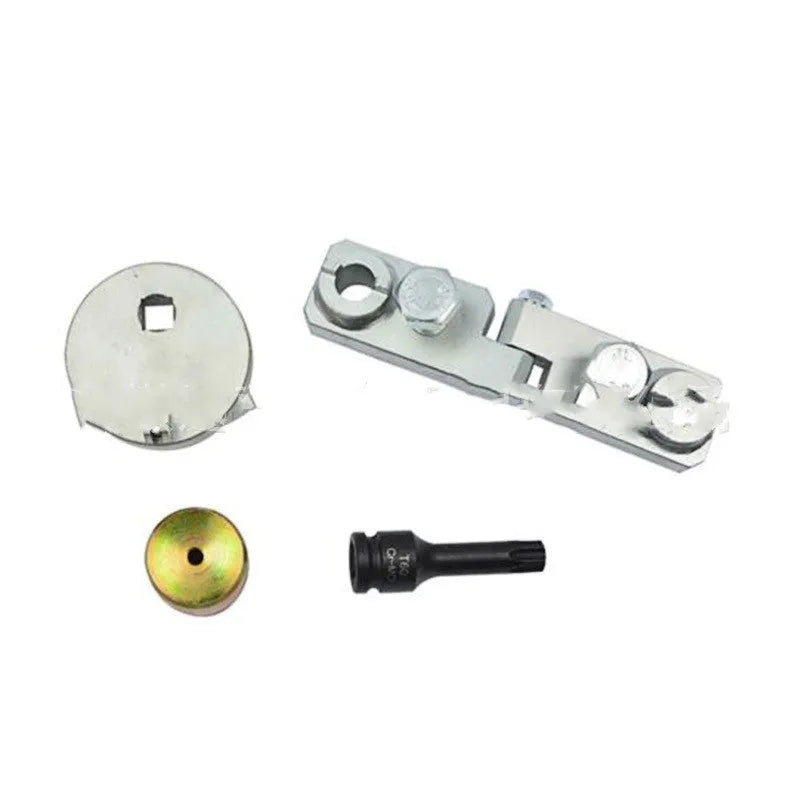

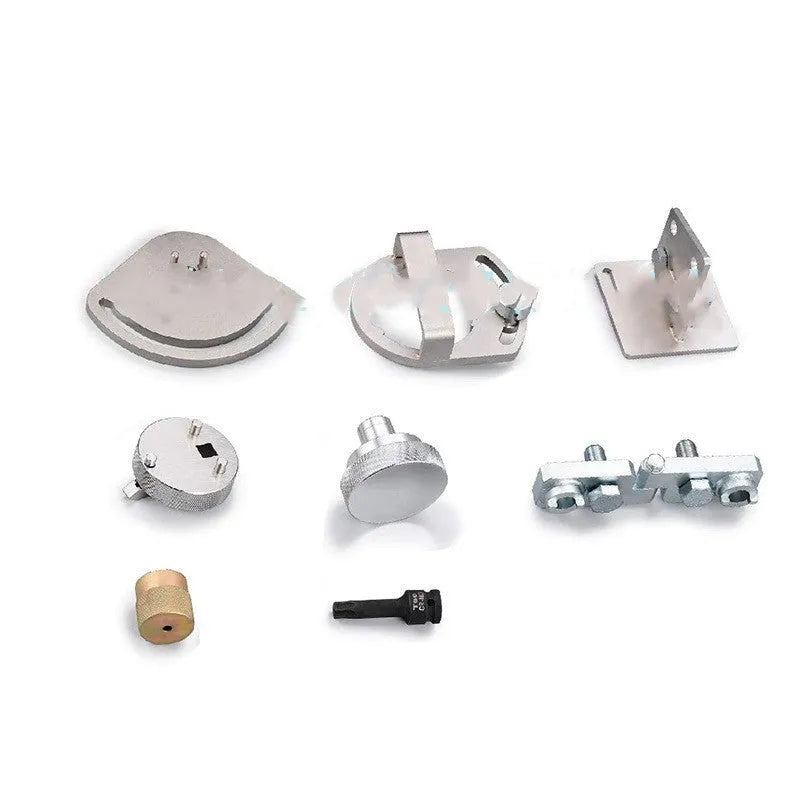

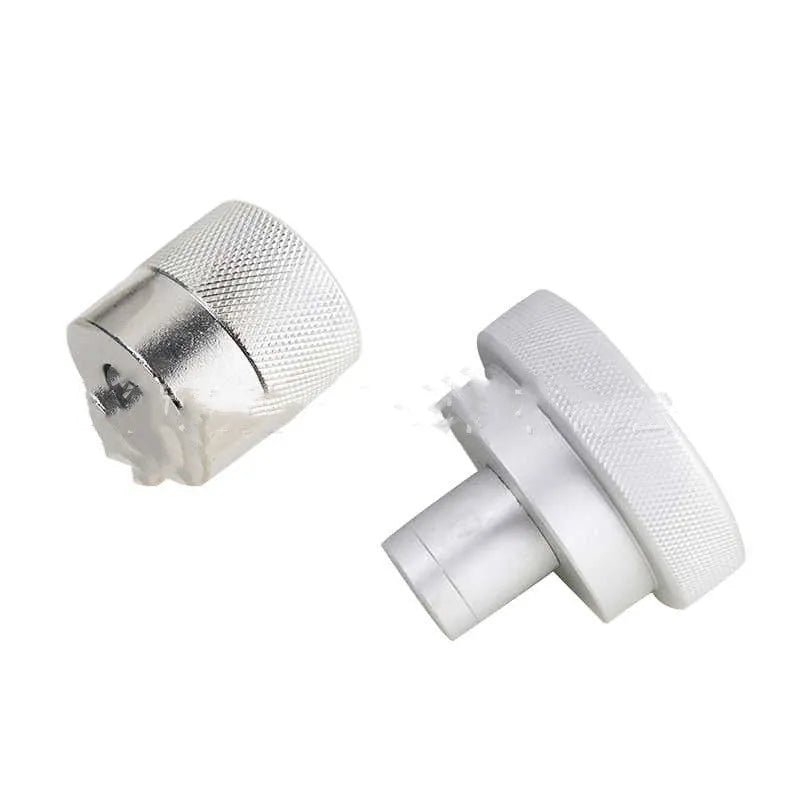

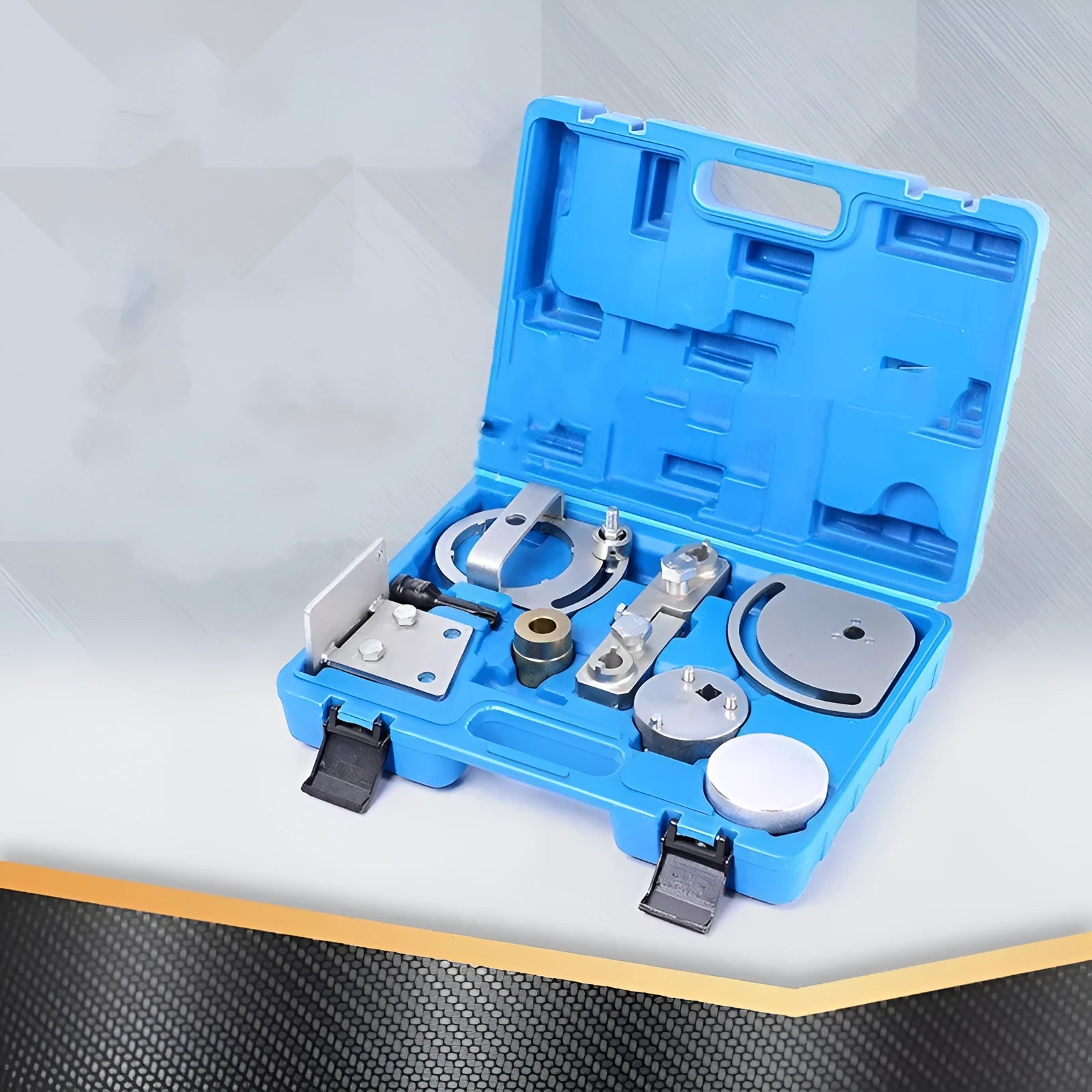

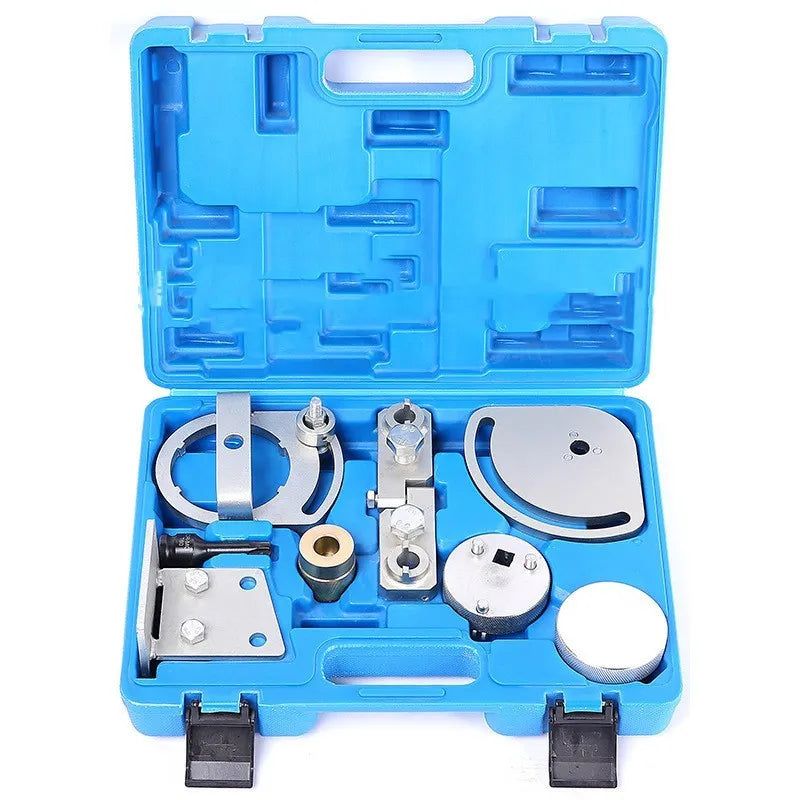

The tools are constructed from carbon steel, a standard and robust material choice for professional-grade automotive tools that must withstand the torques and forces involved in engine work. The construction is focused on functionality, providing the necessary rigidity and strength to act as alignment pins, locking tools, and holding fixtures without bending or flexing under load. The set is supplied as a complete kit of eight individual tools, each serving a defined role in the alignment process for the supported engine families.

Size and Practical Fit

The complete set has dimensions of 37 cm in length, 28 cm in width, and 11 cm in height, making it a compact yet comprehensive kit that can be stored conveniently in a toolbox or workshop drawer. This size reflects its specialised nature; it is not a bulky general toolset but a targeted collection of fixtures. The tools are designed to interface directly with the specific machining and bolt patterns found on Volvo cylinder heads, camshafts, and engine blocks, ensuring a correct and secure fit during use.

Uses and Placement

The application of this toolset is clearly defined by the vehicle models and engine types it supports. It is not a universal tool but a model-specific solution for a critical repair task.

Event or Professional Use

For professional mechanics or specialist Volvo repair shops, this kit is a time-saving and risk-mitigating investment for common procedures like cylinder head gasket replacement, valve work, or camshaft seal replacement on the listed engines. It ensures jobs are completed correctly the first time, avoiding costly comebacks or engine damage from misaligned components. The ability to properly mount the camshaft cover using the designated tools also helps prevent oil leaks and ensures correct valve cover sealing.

Everyday Home Use

For the advanced home mechanic undertaking major engine work on their Volvo 700, 800, 850, 900, 960, C70, S40, S60, S70, S80, S90, V40, V50, V70, XC70, V90, or XC90, this tool set is a necessary component of the job. It moves the task from a risky guesswork operation to a measured, procedure-following repair. Using these tools provides confidence that the engine's internal timing will be correct upon reassembly, which is crucial for the engine to run properly after such invasive work.

Benefits and Buying Value

The value of this specialised tool kit is intrinsically linked to the specific repair task it enables. Its benefits are practical and directly connected to successful engine repair outcomes.

Reuse and Low Maintenance

As a set of solid steel alignment tools, it is designed for repeated use over many years and across multiple engine jobs on compatible vehicles. There are no consumable parts or complex mechanisms that require maintenance. Proper cleaning after use and storage in the provided dimensions will keep the kit ready for its next application. Its longevity is a key part of its value proposition for anyone who regularly works on these Volvo engines.

Why Choose This Product

Choosing this product is a decision based on specific compatibility and task suitability. It is the correct tool for aligning the CAM, cylinder head, and crankshaft on the stated Volvo T6 3.0, 3.2, and other supported engines during cylinder head assembly removal and installation. Its design follows the requirements for these procedures, potentially as outlined in official Volvo service documentation. For the supported models, it offers a direct solution to a precise technical challenge, eliminating the need for improvised or incorrect methods that could damage expensive engine components.
