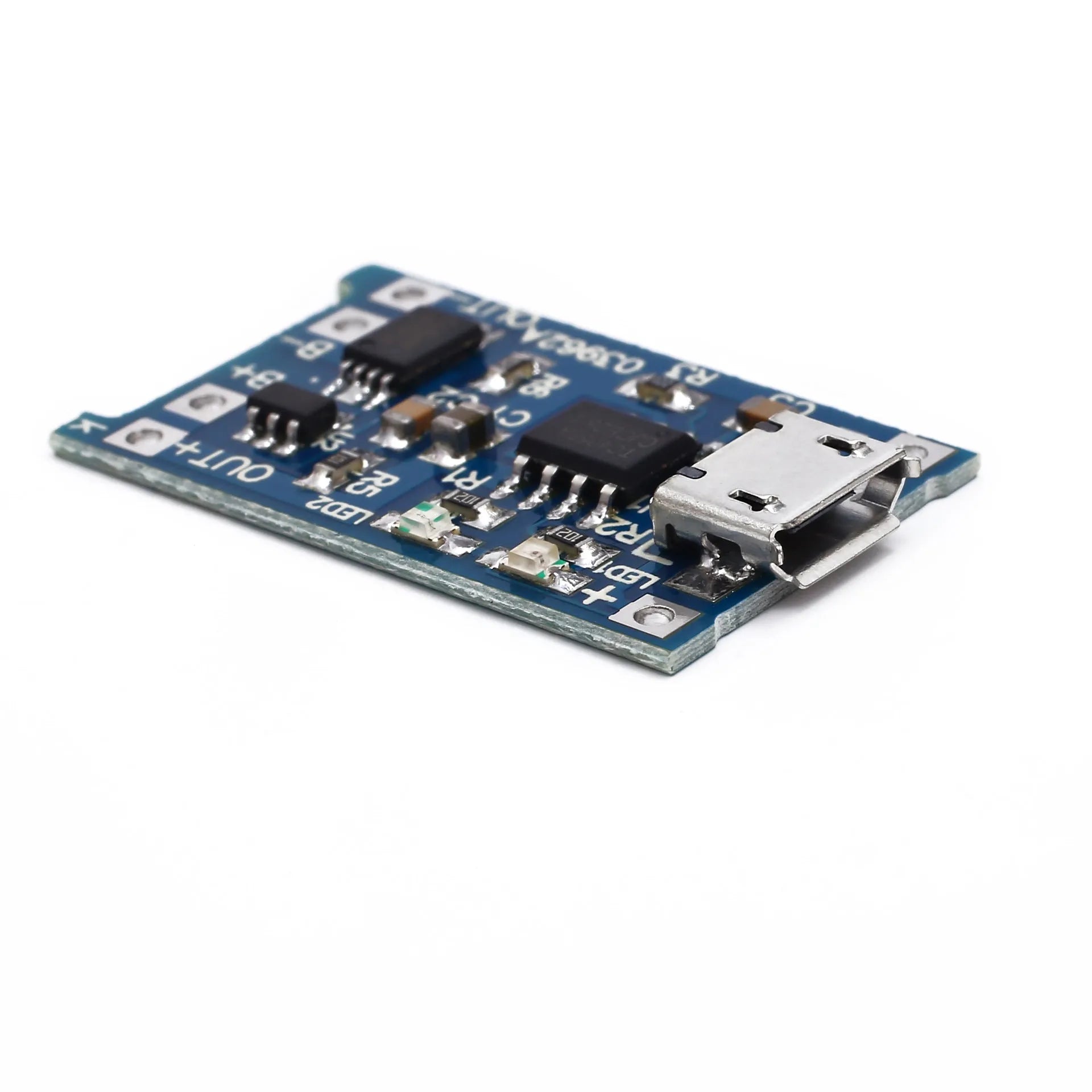

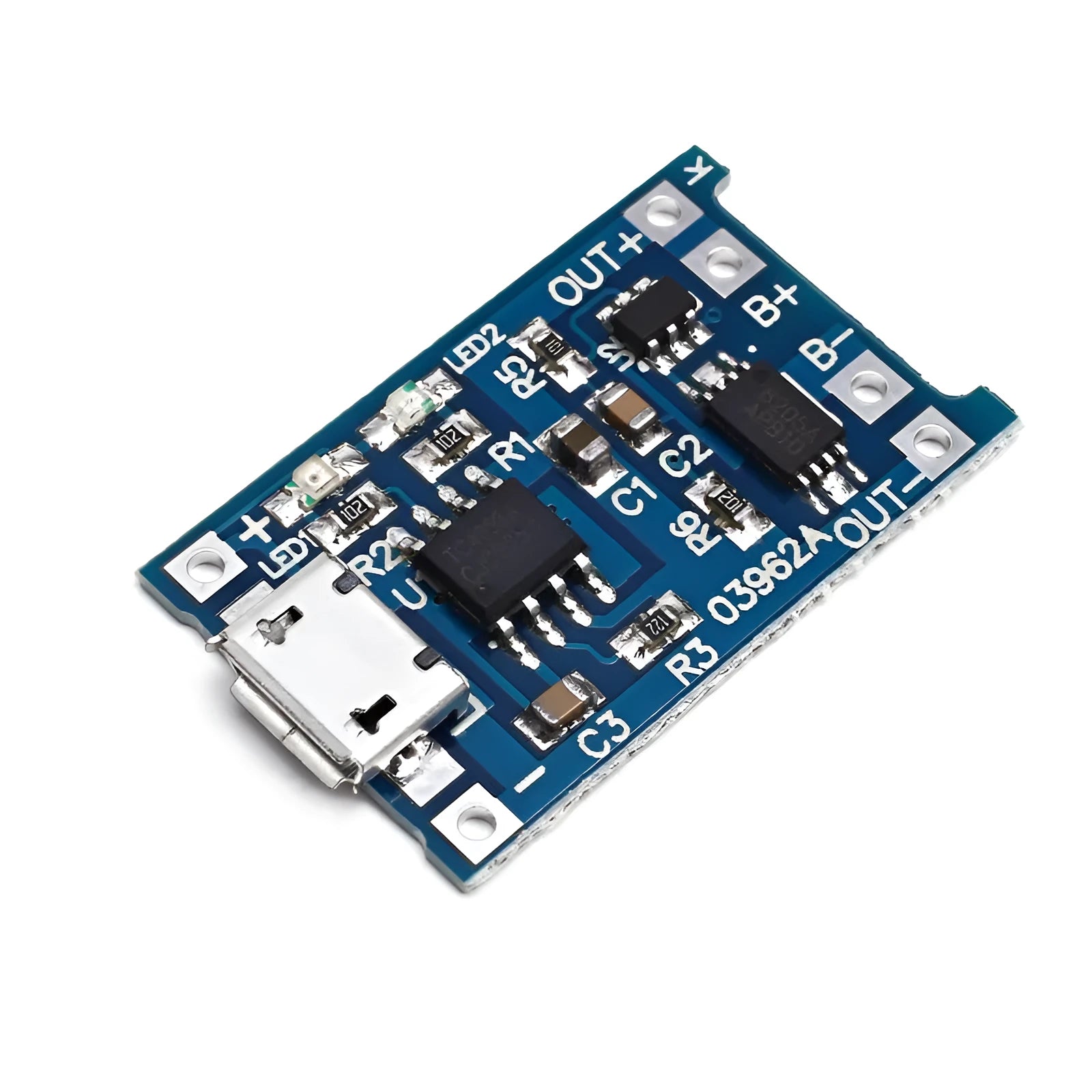

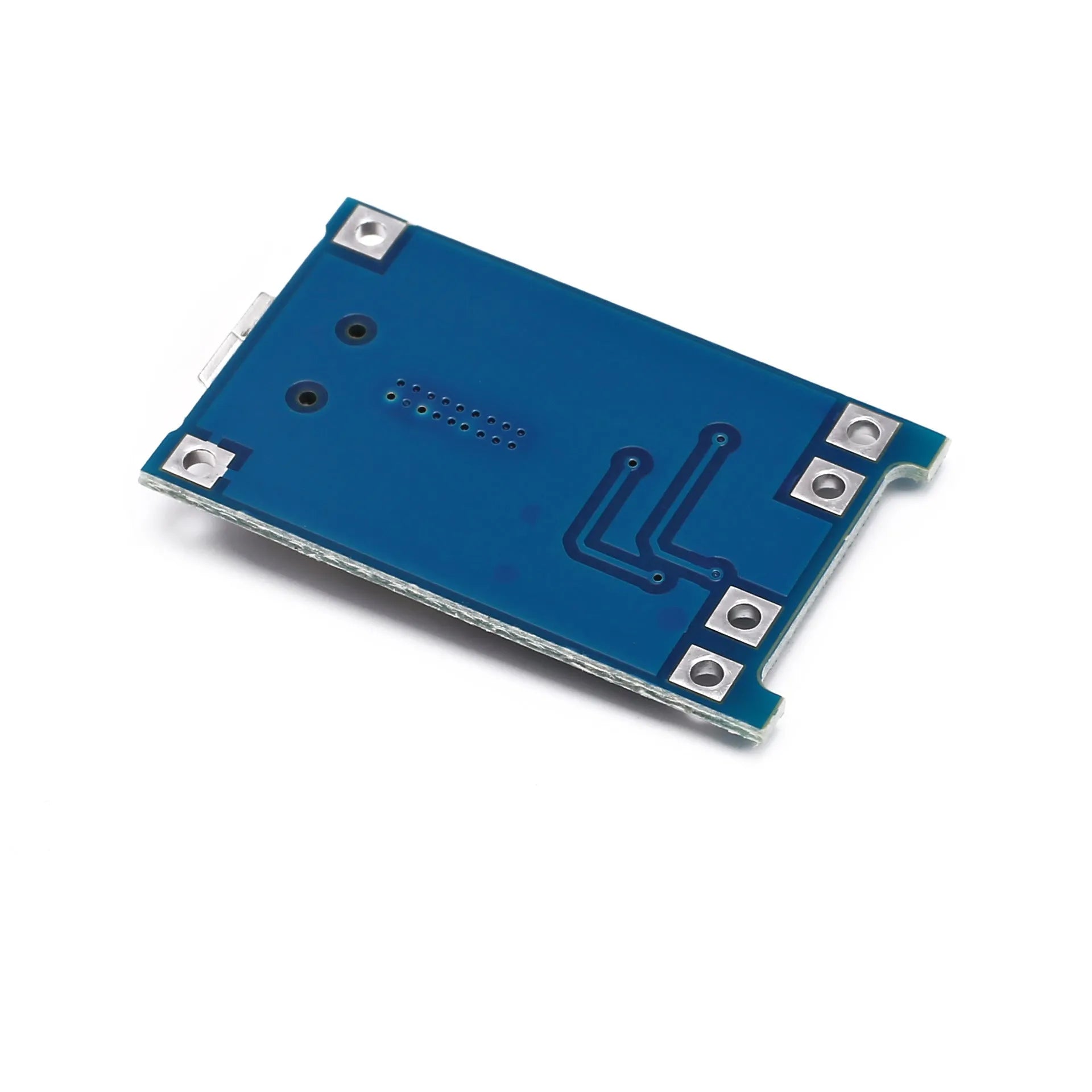

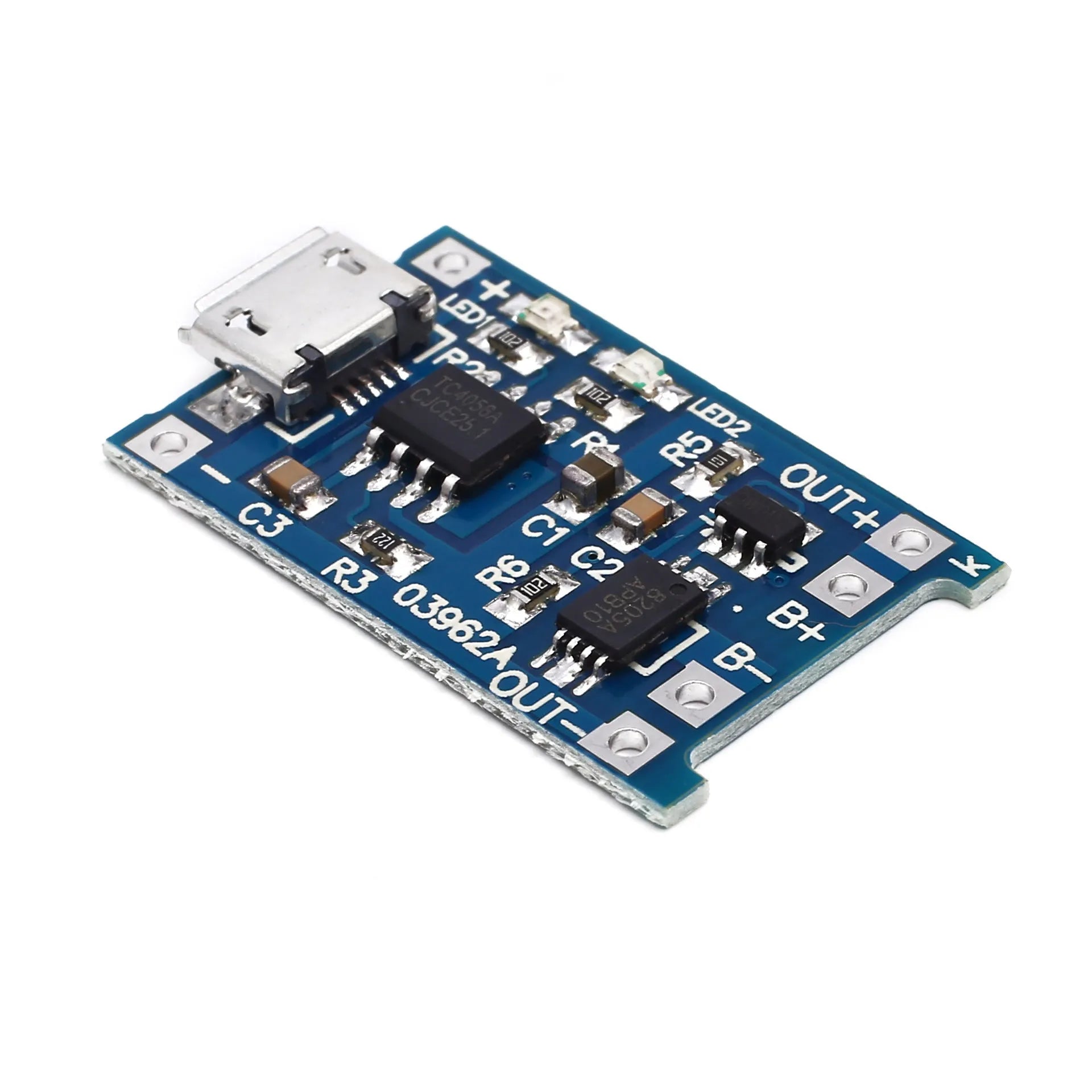

Compact Lithium Battery Charging and Protection Board with 5V Input and 3A Overcurrent Protection

This integrated circuit board consolidates essential charging and safety features for single-cell lithium batteries into a space-saving 2.6cm by 1.7cm footprint. Designed for hobbyists, makers, and repair technicians, it provides a straightforward solution for managing 3.7V cells like the common 18650. By combining a charging circuit with voltage and current protection, it removes the complexity of sourcing and wiring separate modules, making it a practical choice for custom battery packs, portable device upgrades, or electronic prototypes where reliable power management is required.

Features and Construction

The board's primary value lies in its integration of multiple functions. Its construction is based on a standard blue FR-4 printed circuit board populated with surface-mount components. This design approach results in a low-profile unit that can be easily mounted within confined spaces, a common constraint in portable electronics and custom enclosures.

Material and Build

The board uses an FR-4 glass-reinforced epoxy laminate substrate, a common and cost-effective material for PCBs that provides sufficient rigidity and electrical insulation for this application. The blue solder mask offers a visual contrast for inspecting solder joints and tracing circuits. All electronic components, including the charging IC, protection IC, resistors, and capacitors, are surface-mounted, contributing to the board's compact 2.6cm by 1.7cm dimensions and suitability for automated assembly or careful manual soldering.

Size and Practical Fit

With a total area of approximately 4.42 square centimetres, the board's small size is one of its key practical advantages. This compact form factor allows it to be installed in tight spaces within existing devices or new builds, such as inside torch bodies, custom power banks, or small robotics projects. The 2.6cm length and 1.7cm width should be factored into initial project planning to ensure adequate clearance for wiring and heat dissipation.

Uses and Placement

This board is designed for scenarios requiring managed charging and basic protection for a single lithium-ion or lithium-polymer cell. Its 5V input makes it compatible with common USB power sources and standard wall adapters, while its output is tailored for the nominal 3.7V of a single cell.

Event or Professional Use

For professional repair work or prototyping, this integrated board can serve as a reliable, off-the-shelf power management unit. It can be used to refurbish devices with failed internal charging circuits, to create custom test jigs for battery analysis, or as a validated module in low-volume production runs where designing a fully custom circuit is not justified. The specified 3A overcurrent protection helps prevent catastrophic failure during fault conditions or unexpected shorts.

Everyday Home Use

For DIY enthusiasts and makers, this board simplifies numerous home projects. It is suitable for building custom USB-rechargeable torches, portable fans, or wireless speaker batteries. It can also be used to add safe charging capability to older devices originally designed for disposable batteries. The inclusion of 2.5V over-discharge protection is particularly useful for applications where a battery might be left connected, as it helps prevent damage from deep discharge which can permanently reduce cell capacity.

Benefits and Buying Value

The integration of charging and protection into one unit offers tangible benefits in terms of reduced part count, simplified wiring, and saved space. For anyone working with lithium batteries, which require careful handling to avoid safety risks, using a board with built-in protection adds a layer of safety and can help extend the usable life of often-expensive battery cells.

Reuse and Low Maintenance

Once installed, the board requires minimal ongoing maintenance. There are no moving parts or user-serviceable components. Its solid-state design means it will function reliably as long as it is operated within its specified parameters: a 5V input, and connected to a single lithium cell. The protection features work autonomously, constantly monitoring for over-discharge and overcurrent conditions without requiring user intervention.

Why Choose This Product

This board is chosen for its specificity and integration. It provides a clearly defined set of functions—charging at up to 1000mA with a 4.2V cut-off, plus 3A/2.5V protection—in a known, compact size. This allows builders to proceed with confidence, knowing the exact performance envelope and physical space required. It eliminates guesswork compared to selecting individual, potentially mismatched, components, making the development process faster and more predictable for both one-off projects and repeated builds.
