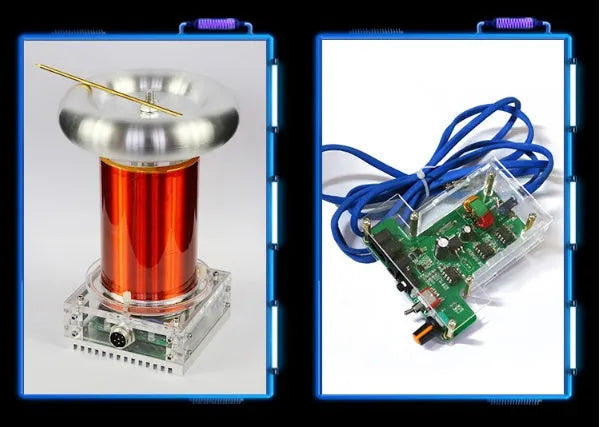

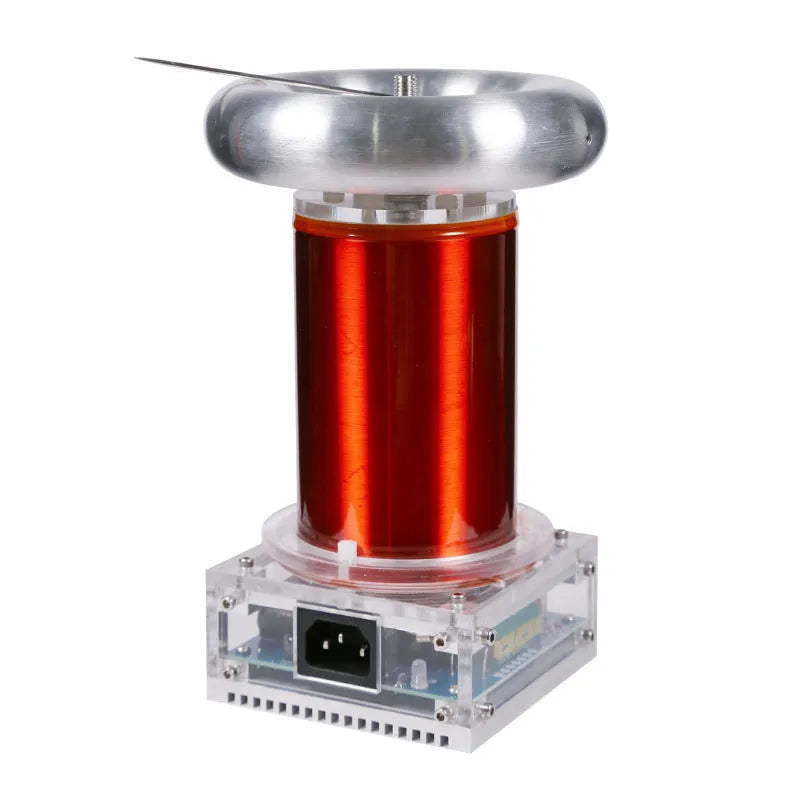

Music Tesla Coil Driver Board: 200VA 250W Unit with 20cm Arc Discharge for Audio-Synced Demonstrations

This Tesla coil driver board is engineered for users seeking a practical and visually striking method to demonstrate electrical principles or create dynamic light displays. Operating without the need for a ground wire and connecting directly to a standard 220V socket simplifies the setup process considerably compared to more complex high-voltage systems. The core function transforms audio signals from any device with a 3.5mm output into corresponding electrical arcs, with the arc length adjustable up to a stated 20cm. With an average power handling of 250W and a product capacity of 200VA, it supports a range of demonstration intensities, all contained within a compact chassis measuring 100 x 115 x 205 mm.

Features and Construction

The design prioritises operational safety and user convenience through specific technical implementations. Key construction elements work together to manage the high-voltage discharge in a controlled manner, enabling the impressive visual effect while incorporating safeguards.

Material and Build

The driver board's construction centres on a printed circuit board (PCB) populated with electronic components necessary for its 200VA capacity. An arc extinguishing isolation device is integrated into the design, a feature aimed at safely interrupting the arc. The physical housing, implied to be structurally strong, provides a rigid enclosure for the electronics, contributing to the product's portability and durability during use.

Size and Practical Fit

With dimensions of 100mm in width, 115mm in depth, and 205mm in height, the unit has a relatively small footprint, allowing it to fit on a desktop or demonstration bench without requiring excessive space. The total weight of 1kg further supports its portable nature, making it feasible to transport for educational shows or between locations. This compact form factor does not compromise the stated 20cm arc discharge capability.

Uses and Placement

The primary application is generating visible, music-responsive electrical arcs for educational or entertainment purposes. Correct placement and setup are crucial for both the effectiveness of the demonstration and the safety of the operator and audience.

Event or Professional Use

For science exhibitions, school demonstrations, or maker fairs, this unit can serve as a centrepiece to illustrate electromagnetic principles and high-frequency alternating current. The ability to synchronise the arcs to music adds an engaging, multimedia dimension to such presentations. The 20m arc discharge distance (as stated in source, clarified as 20cm in features) provides a visually clear effect for small to medium-sized audiences when used within the recommended safety perimeter.

Everyday Home Use

For hobbyists and enthusiasts in a home workshop, the driver board offers a manageable project for experimenting with high-voltage phenomena. Its no-ground-wire requirement and single 220V power supply make it more accessible for home use than some comparable systems. Users can create custom light shows synced to their favourite music, though strict adherence to the provided safety notes—such as maintaining a 0.5m distance and limited 3-5 minute operational sessions—is paramount in a domestic setting.

Benefits and Buying Value

The value of this product lies in its integrated design that reduces setup complexity and its focused capability for creating audio-controlled electrical displays.

Reuse and Low Maintenance

The product is designed for repeated use across multiple demonstration sessions. The inclusion of an arc extinguishing device helps protect the internal components during operation. Maintenance is centred on following the usage instructions, such as properly installing the thimble and handling the optical fibre connection with care to avoid damage. No specialist ongoing care is indicated beyond these operational guidelines.

Why Choose This Product

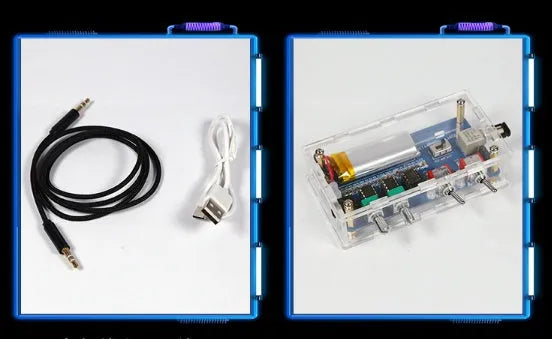

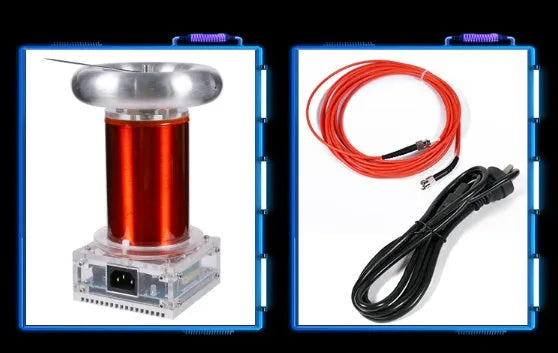

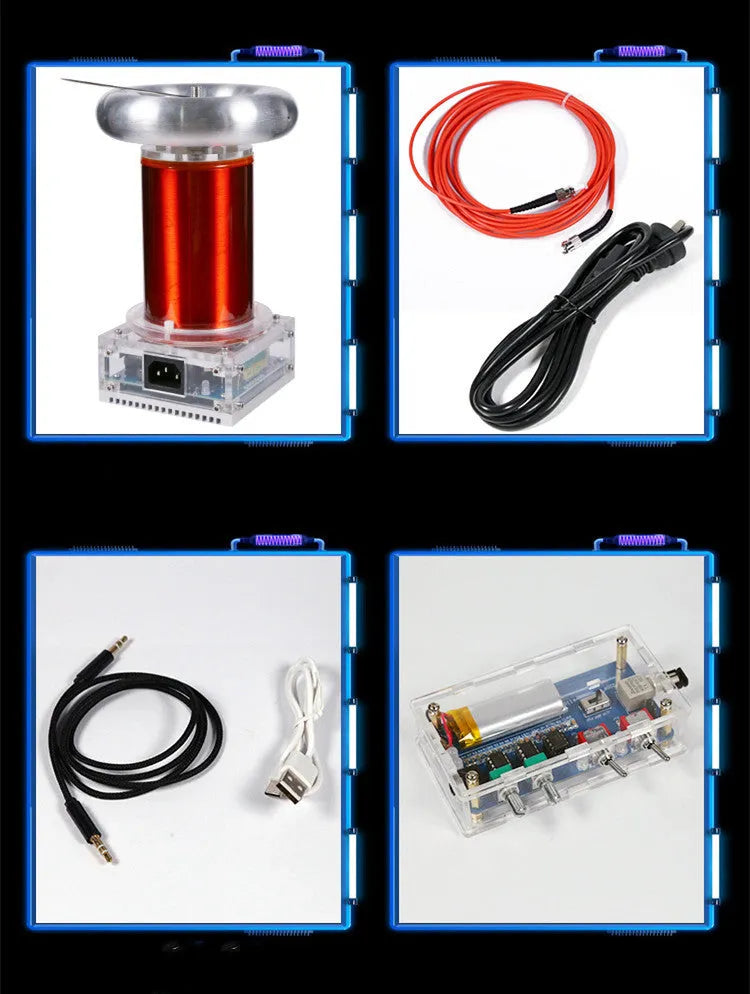

This driver board is a suitable choice for those needing a functional Tesla coil system that balances visual output with simplified infrastructure. Its key differentiators are the integrated safety features like the arc extinguishing isolation, the elimination of a ground wire, and the direct 220V power supply—all of which reduce the ancillary equipment and setup knowledge required. The provision of all necessary cables (power, audio, USB, optical fibre) in the package means the user has everything needed to begin demonstrations aside from an audio source.
