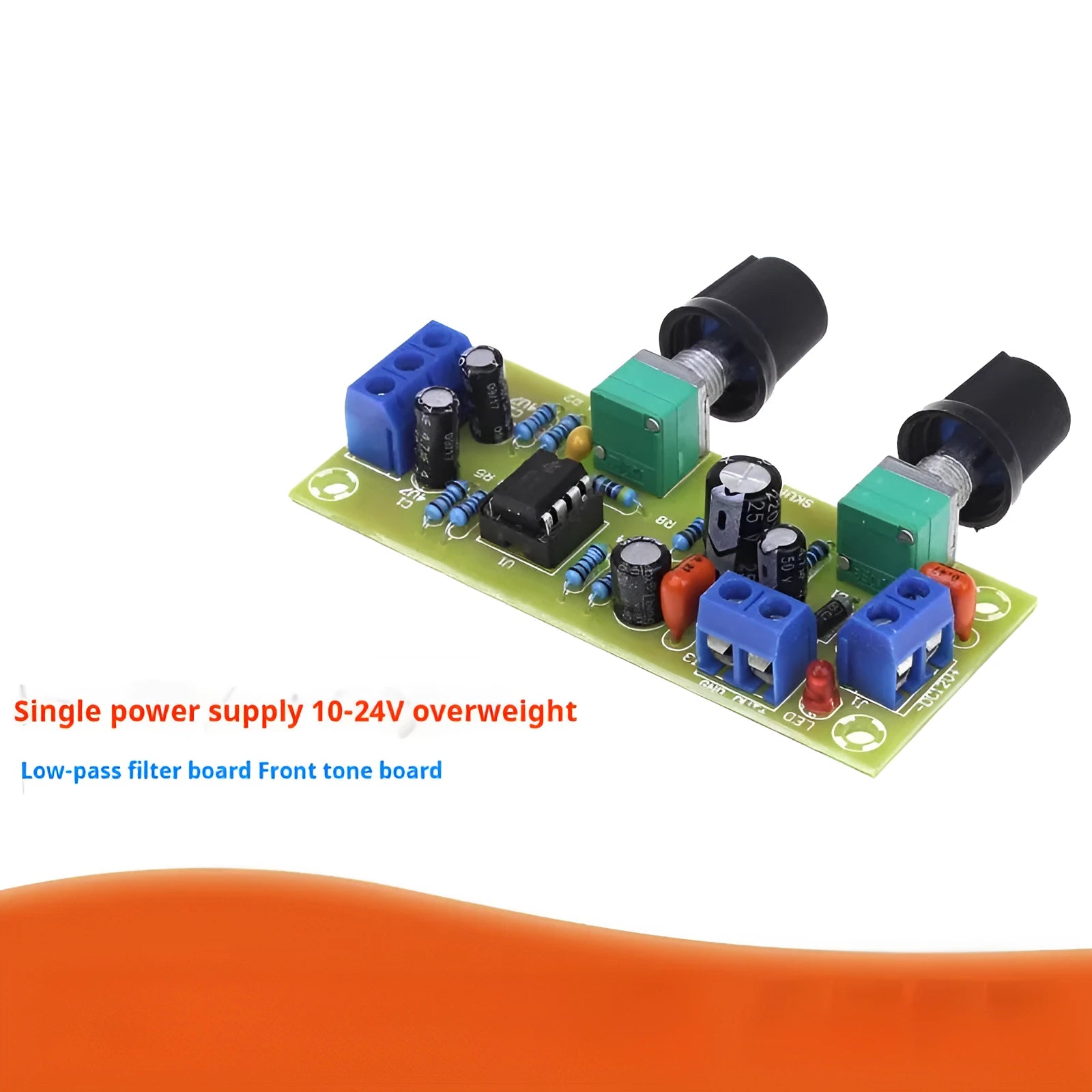

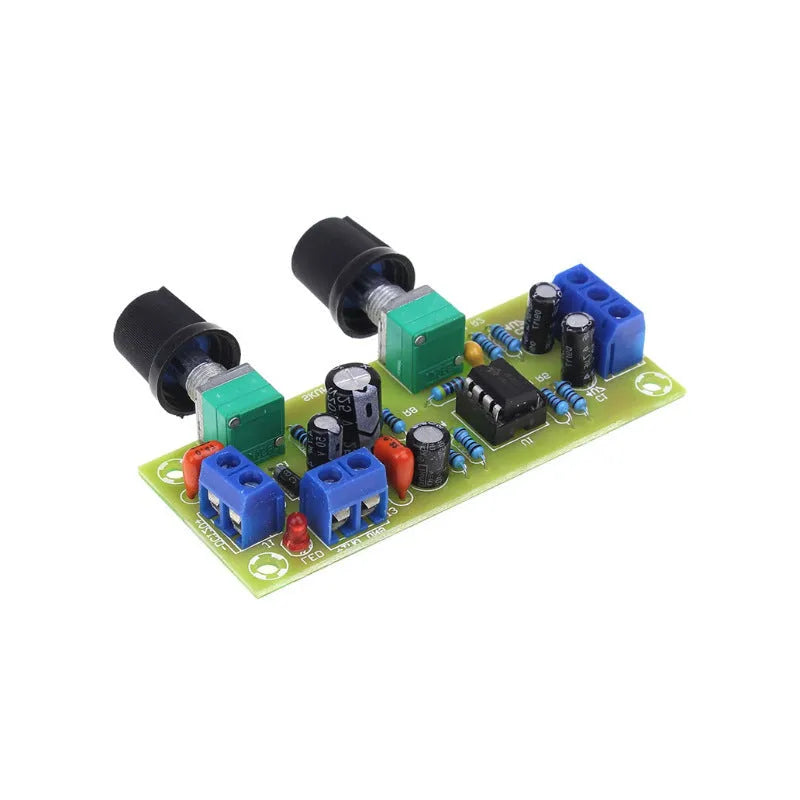

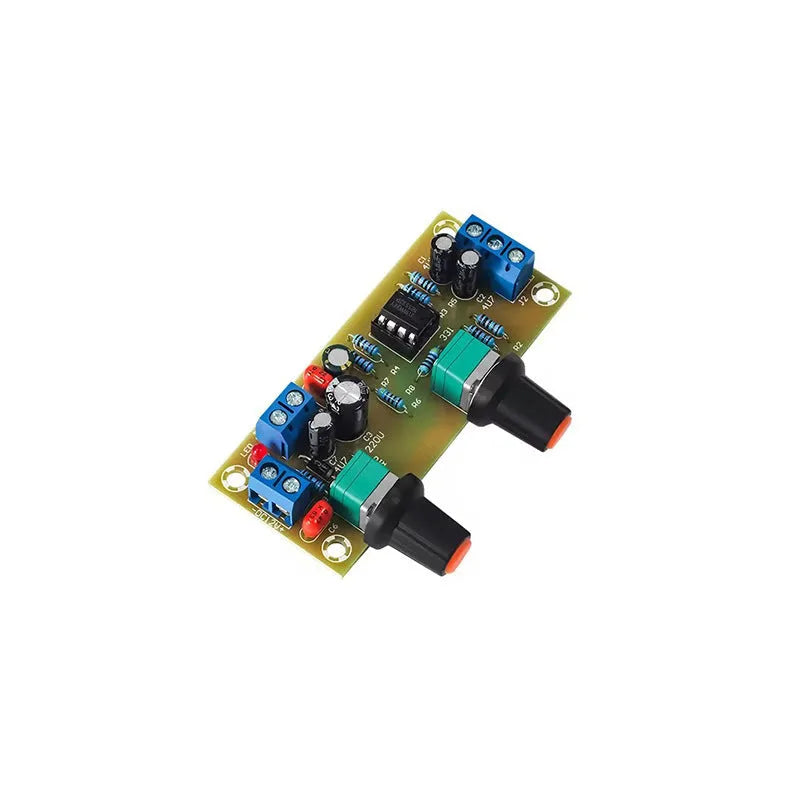

Single Power Supply 10-24V Super Dynamic Bass Boost Front Stage Board for Audio System Enhancement

This front stage board provides a dedicated bass frequency processing solution for audio enthusiasts and system builders working with single-power-supply architectures. Designed to operate across a wide 10-24V DC range, it eliminates the need for complex dual-voltage power supplies commonly required by some audio processing components. The board specifically targets the low-frequency spectrum from 22Hz to 300Hz, offering adjustable enhancement for bass elements in audio signals. Its compact footprint and simplified power requirements make it suitable for integration into custom audio installations, vehicle sound systems, and compact audio projects where space and power efficiency are practical considerations. The mono output configuration ensures processed bass signals are consolidated for straightforward routing to amplification stages.

Features and Construction

The board's functionality centres around its specified electrical parameters and physical construction, which determine both its audio processing capabilities and mechanical integration options.

Material and Build

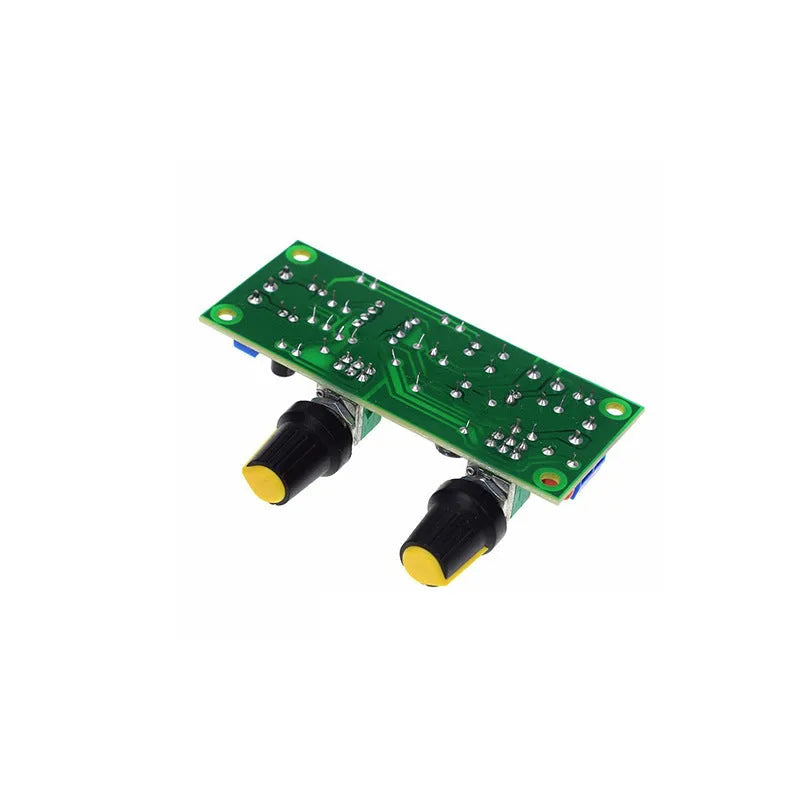

Constructed using an FR-4 fibreglass printed circuit board, this front stage board provides a stable platform for electronic components. FR-4 material offers good electrical insulation properties and mechanical rigidity, helping to maintain circuit integrity during installation and use. The board thickness of 1.6mm represents a standard PCB dimension that provides sufficient structural strength for component mounting while remaining slim enough for compact installations. This material choice supports the board's function as a reliable substrate for the bass enhancement circuitry without adding unnecessary bulk or weight to audio system builds.

Size and Practical Fit

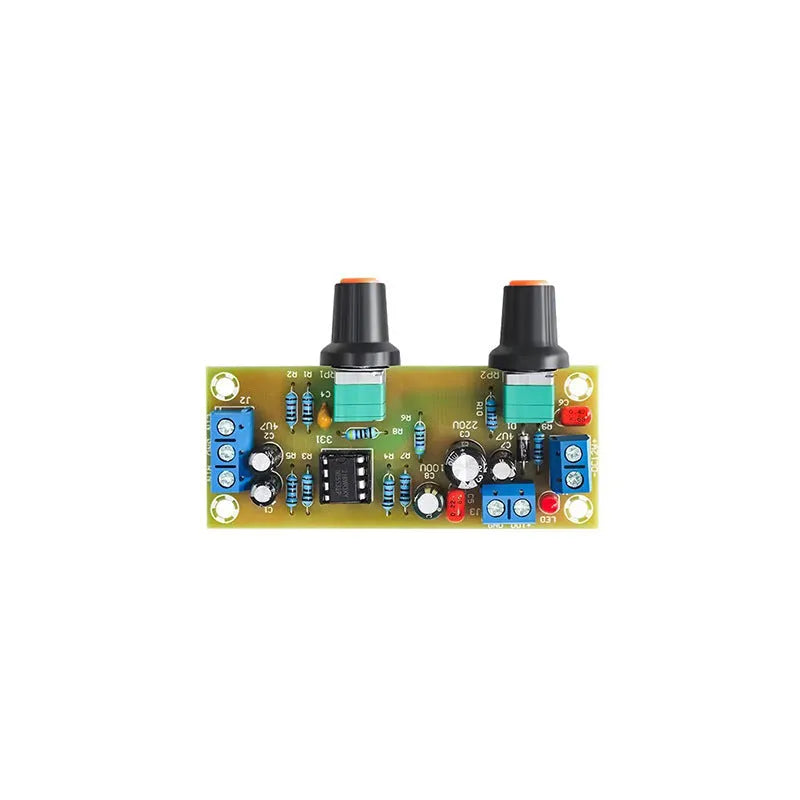

With overall dimensions of 78mm in length and 32mm in width, the board presents a compact footprint suitable for integration into space-constrained audio installations. The 70 x 24mm spacing between the four mounting holes provides multiple attachment points for secure fastening, while the 3.2mm hole diameter accommodates standard mounting hardware. The 32.5mm centre-to-centre spacing between potentiometer shafts ensures adequate room for adjustment knobs without interference, allowing for straightforward control access during tuning. At 30g, the board's weight reflects its component density and material composition, contributing to stable mounting without adding significant mass to the overall system.

Uses and Placement

This front stage board serves specific roles in audio system enhancement, particularly where bass frequency control and simplified power integration are primary objectives.

Event or Professional Use

For event audio systems or professional installations requiring consistent bass enhancement, this board's wide 10-24V operating range accommodates various power supply scenarios commonly encountered in temporary setups. The ability to accept both mono and dual channel inputs provides flexibility for different source configurations, while the dedicated 22Hz-300Hz processing range allows technicians to target specific bass frequencies without affecting higher frequency content. The board's compact size facilitates integration into rack-mounted systems or custom processing units where space optimization is important for professional audio applications.

Everyday Home Use

In home audio system upgrades, this board offers a straightforward method to add adjustable bass enhancement without requiring extensive technical knowledge about dual power supplies. The single power supply requirement from 10V to 24V DC matches common power adapter outputs, simplifying integration with existing home audio components. Home users can incorporate the board into custom audio projects, vehicle sound system upgrades, or as part of a dedicated bass processing chain for music listening or home theatre applications where controlled low-frequency enhancement improves audio presentation.

Benefits and Buying Value

The practical advantages of this front stage board stem from its specified electrical parameters and construction details, which together determine its functional value in audio system applications.

Reuse and Low Maintenance

The FR-4 fibreglass construction provides inherent durability for the circuit board substrate, supporting repeated use in audio system configurations. With no moving parts and solid-state componentry typical of such audio processing boards, maintenance requirements remain minimal beyond ensuring clean connections and proper power supply matching. The board's design focuses on reliable operation within its specified voltage and frequency parameters, offering consistent performance for extended periods in appropriately configured audio systems.

Why Choose This Product

This front stage board addresses the specific need for bass frequency enhancement in audio systems where single-power-supply operation simplifies installation and reduces complexity. Its 22Hz-300Hz processing range directly targets the bass spectrum without unnecessary broader frequency coverage, while the 10-24V DC operating voltage accommodates various power supply options without requiring voltage regulation between specific values. The combination of compact physical dimensions, specified mounting options, and straightforward mono input/output configuration provides a practical solution for audio enthusiasts seeking to add adjustable bass control to their system builds without extensive modification to existing power infrastructure.
