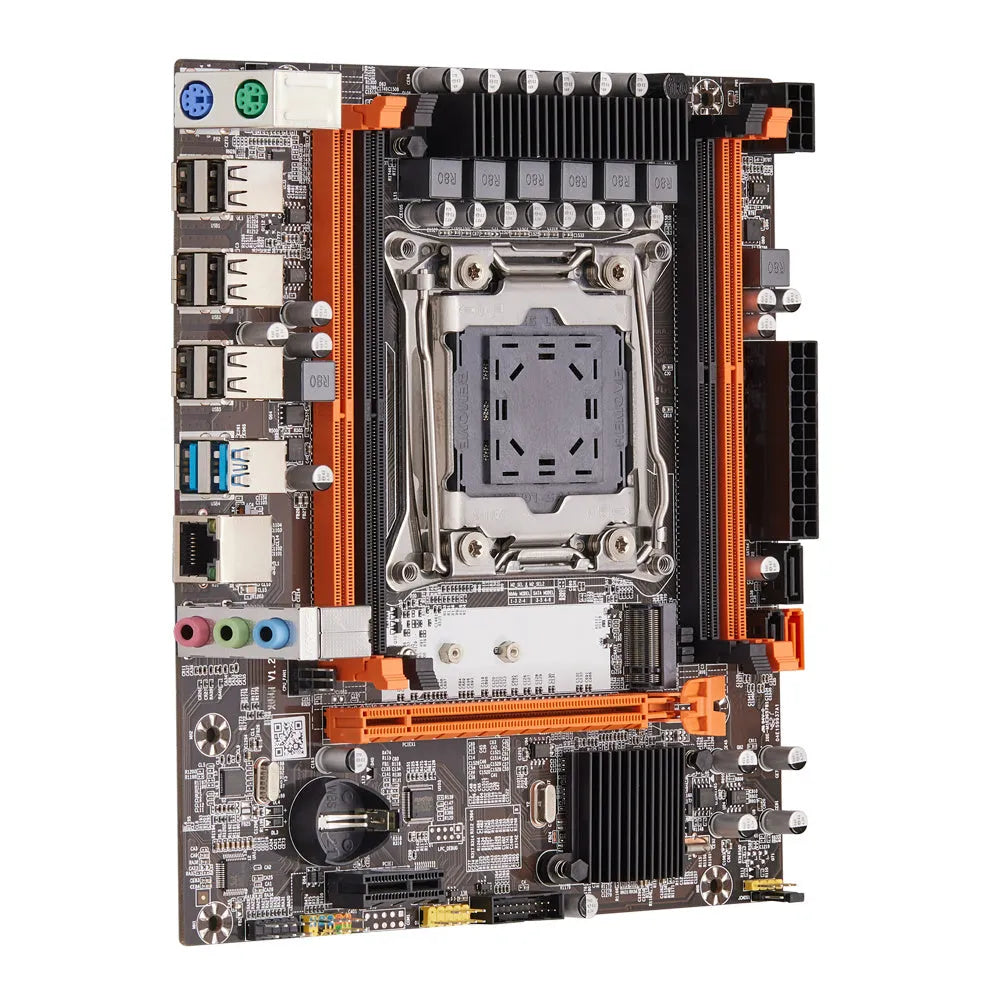

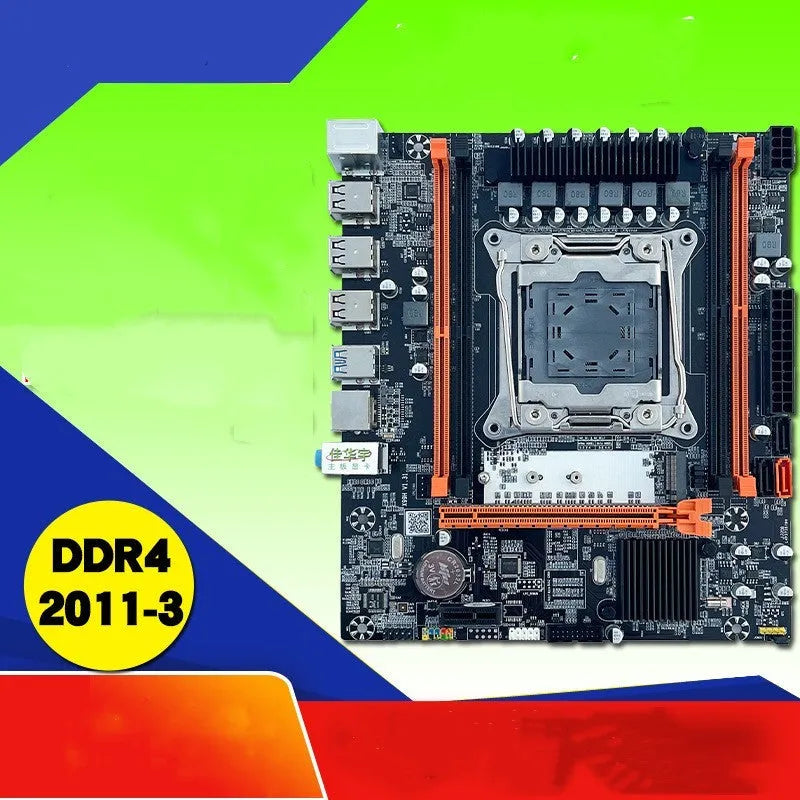

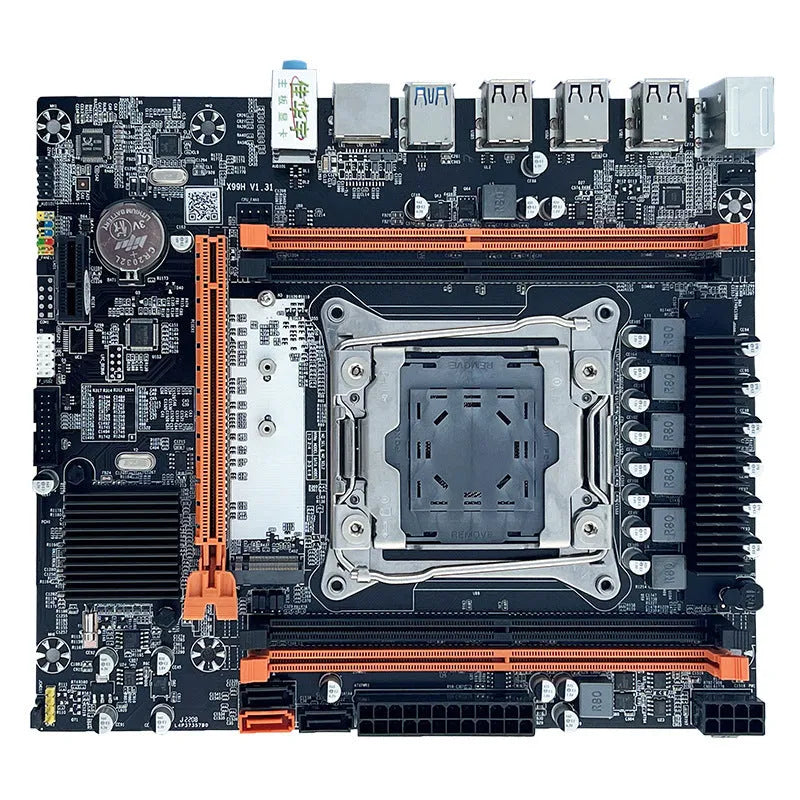

X99 Computer Motherboard DDR4 Server M-ATX B85 LGA2011-3 Socket 214x186mm

This X99 computer motherboard offers a practical foundation for building a DDR4 server or workstation in a compact M-ATX format. Designed around the B85 chipset, it supports LGA2011-3 processors and provides multiple memory speed options including 2133, 2400, and 2666MHz. The board includes a PCI-E X16 3.0 slot for adding a dedicated graphics card, plus a single PCI-E X1 expansion slot. Storage connectivity is versatile with SATA3.0, SATA2.0, and M.2 interfaces supporting both NVME and SATA drives. USB ports include four USB3.0 and eight USB2.0 (including expansions), and the integrated network card may be 100M or Gigabit speed. Measuring 214x186mm, it suits compact cases and comes with the colour option set to X99.

Features and Construction

The motherboard uses standard electronic components and a PCB layout optimised for the B85 chipset. It provides clear expansion paths for graphics, storage, and connectivity.

Storage and Expansion

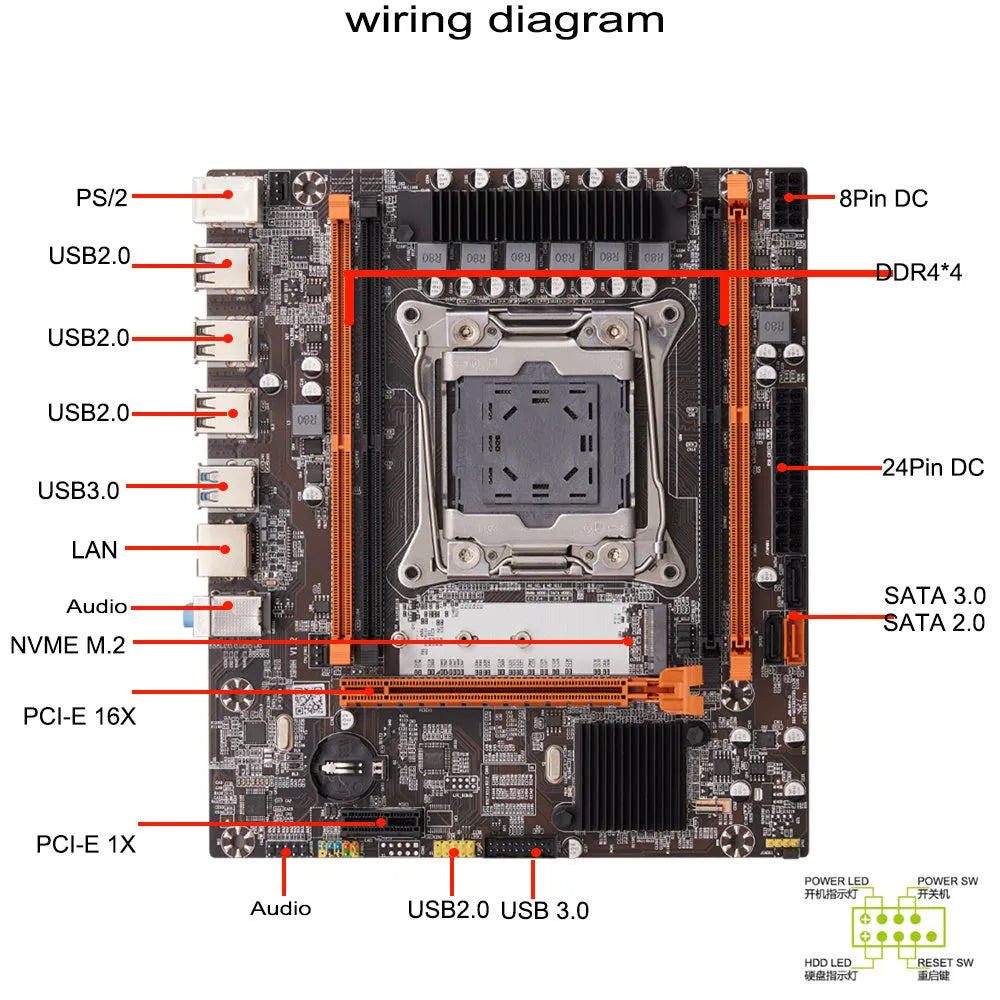

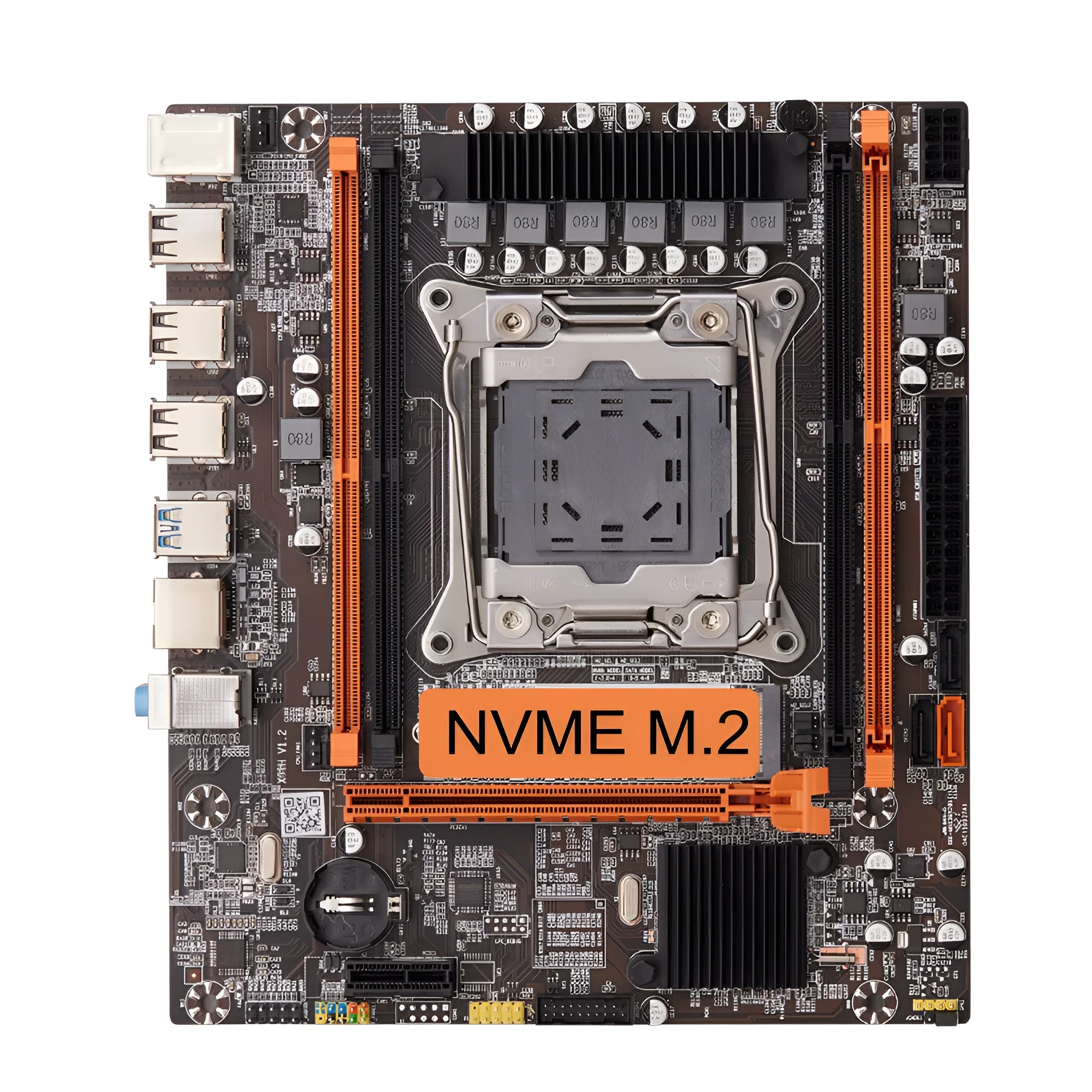

The board includes one SATA3.0 port and two SATA2.0 ports for traditional hard drives or SSDs. It also features one M.2 slot compatible with NVME drives and another with SATA drives, offering flexible high-speed storage options.

Memory and Processor Support

It accepts DDR4 memory at speeds of 2133, 2400, or 2666MHz. The LGA2011-3 socket supports compatible Intel server and workstation processors, making it suitable for multitasking and data-focused tasks.

Connectivity and IO

The board offers a range of USB and network options to connect peripherals and network devices. The integrated network card handles standard wired connections.

USB Ports

Four USB3.0 ports provide fast data transfer, while eight USB2.0 ports (including expansions) support slower peripherals like keyboards and mice.

Network and Graphics

The integrated network card can be either 100M or Gigabit speed, depending on the specific board version. A PCI-E X16 3.0 slot allows for a dedicated graphics card, and one PCI-E X1 slot adds further expansion.

Build and Dimensions

The M-ATX form factor keeps the board compact for space-limited builds, without sacrificing essential features.

Size and Fit

With dimensions of 214 x 186mm, the board fits standard M-ATX cases. It includes one chip in the package and the colour option is set to X99.

Power and Compatibility

Standard ATX power connectors are required. Users should confirm that their processor cooler and case are compatible with the 214x186mm board size.
